Description

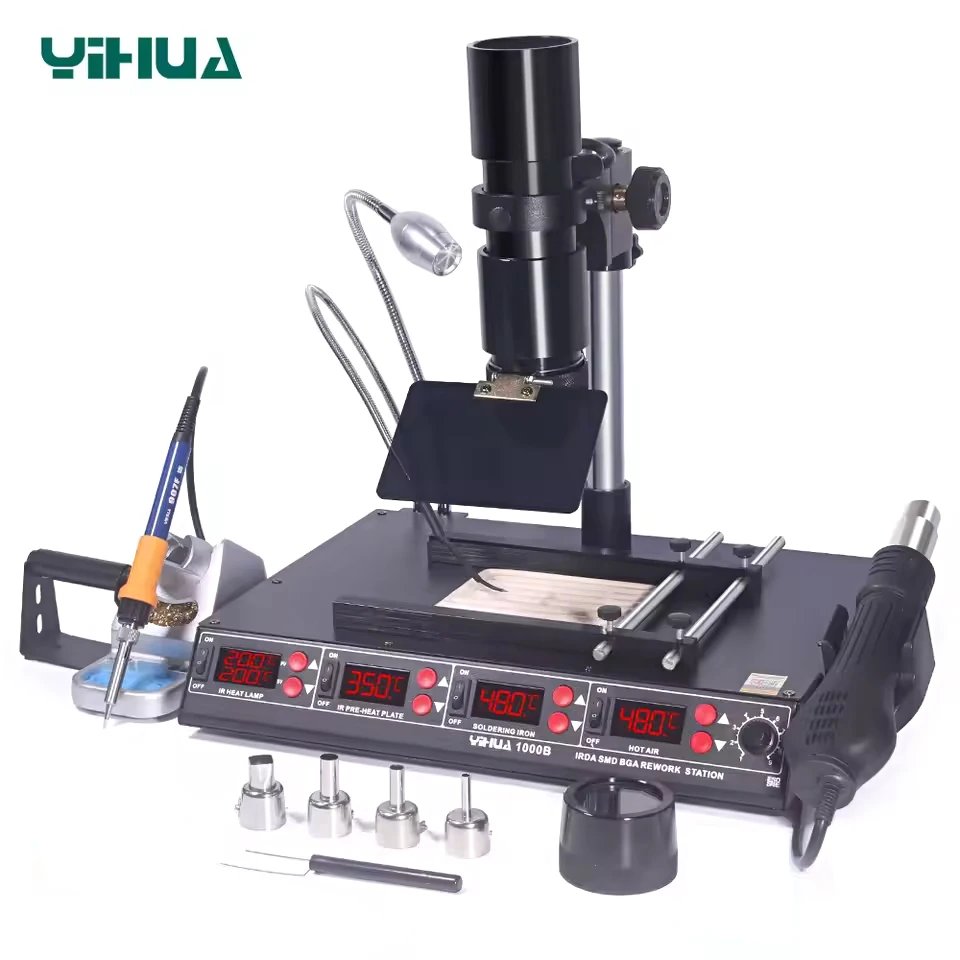

YIHUA 1000B 4-in-1 BGA Rework Station

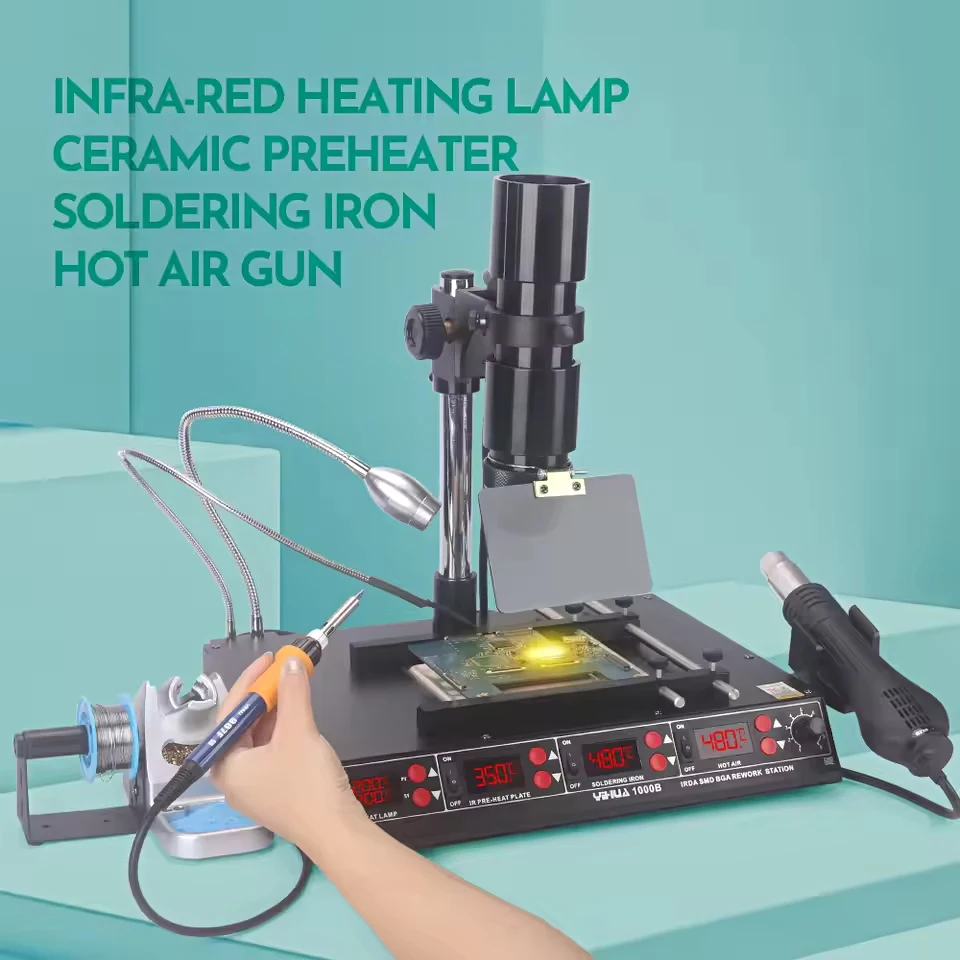

Upgrade your electronics repair setup with the powerful and versatile YIHUA 1000B 4-in-1 BGA Rework Station, designed for professional technicians and DIY enthusiasts. This all-in-one soldering and rework solution combines an infrared heating lamp, preheating station, hot air gun, and precision soldering iron—making it ideal for PCB repairs, BGA rework, chip desoldering, and general electronics maintenance.

Built with high-quality components and certified with CE, FCC, and RoHS standards, the YIHUA 1000B ensures safety, efficiency, and reliable performance. Its wide voltage compatibility (AC 100V–240V) and multiple plug options (US/EU/UK/AU) make it suitable for global use.

Key Features & Benefits

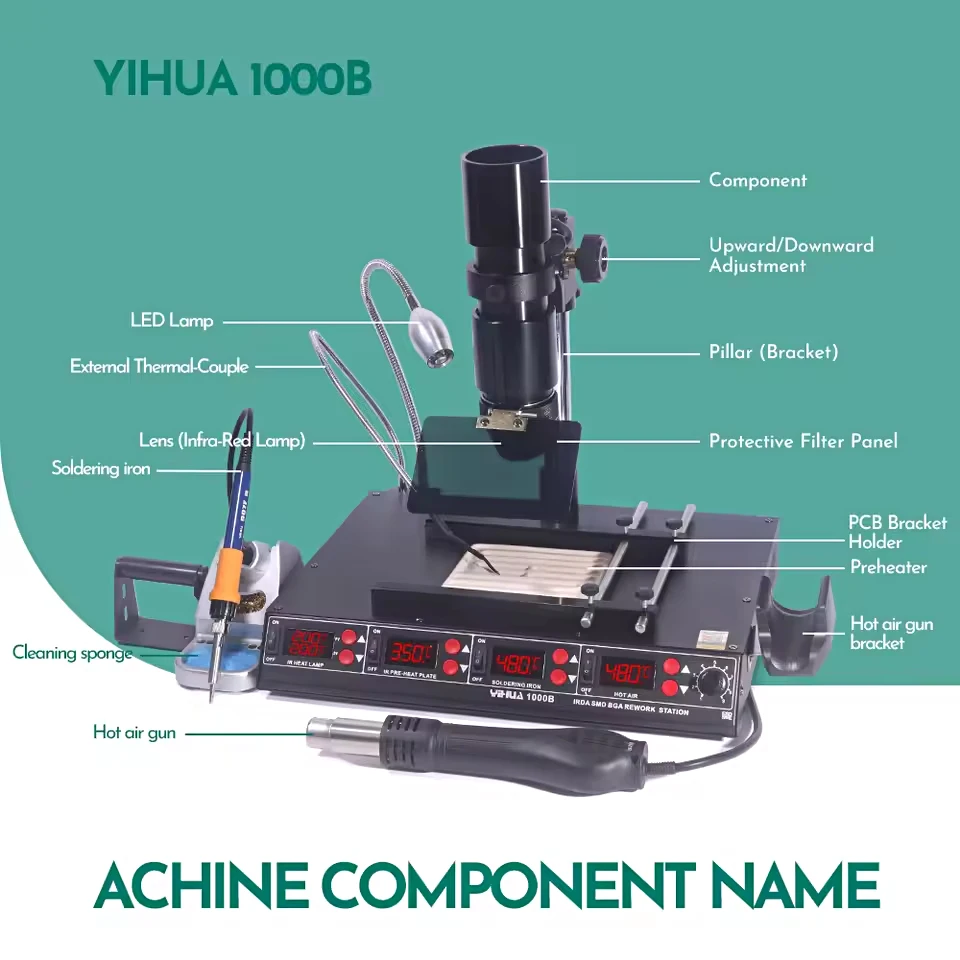

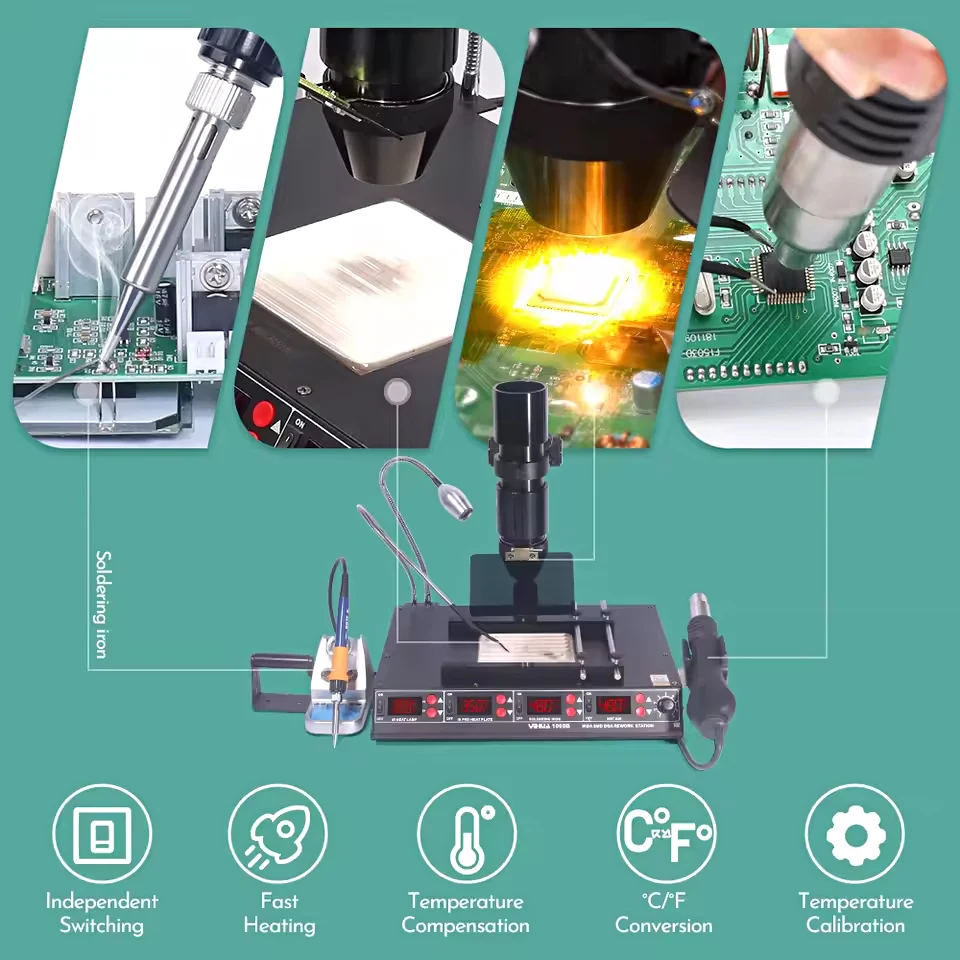

• 4-in-1 Multifunction Design: Combines infrared heating, preheating platform, hot air rework gun, and soldering iron for complete repair capability.
• High Power Output (1350W): Delivers fast heating and stable temperature control for demanding repair tasks.
• Precision Temperature Control: Adjustable temperature ranges across all components with clear LED displays for accuracy.
• Wide Application: Perfect for BGA rework, PCB soldering, IC repairs, mobile phone servicing, and electronics assembly.
• Safe & Certified: CE, FCC, and RoHS certified for quality assurance and user safety.
• Customizable Setup: Supports different plug types and voltage ranges for international users.

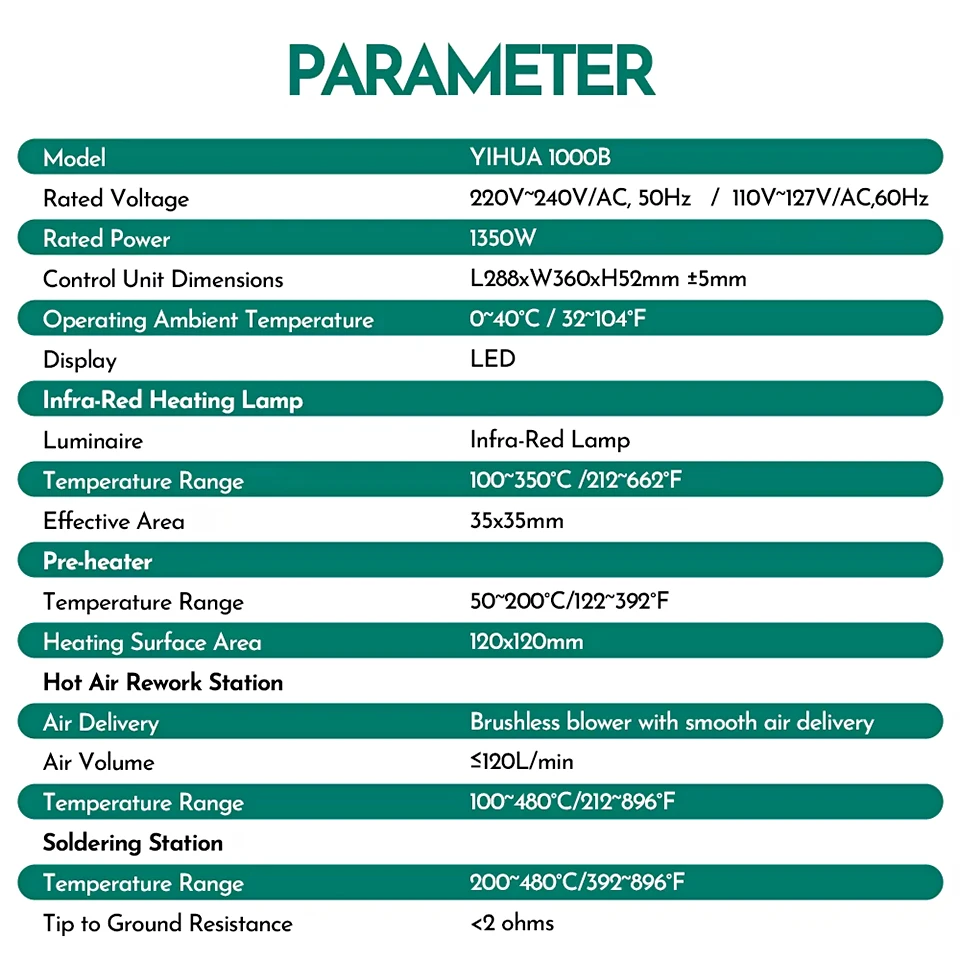

Technical Specifications

Model: YIHUA 1000B
Rated Power: 1350W
Voltage Range: AC 220V–240V (50Hz) / AC 110V–127V (60Hz)
Control Unit Dimensions: 288 × 360 × 52mm (±5mm)

 Infrared Heating Lamp

• Temperature Range: 100°C–350°C (212°F–662°F)
• Display: LED
• Effective Area: 35 × 35mm

Preheating Station

• Temperature Range: 50°C–200°C (122°F–392°F)
• Display: LED
• Heating Area: 120 × 120mm

Hot Air Gun

• Airflow Type: Brushless fan with soft wind
• Airflow Capacity: ≤120L/min
• Temperature Range: 100°C–480°C (212°F–896°F)
• Display: LED

Soldering Iron

• Temperature Range: 200°C–480°C (392°F–896°F)
• Display: LED
• Tip-to-Ground Resistance: <2Ω

Why Choose the YIHUA 1000B?

The YIHUA 1000B stands out as a professional-grade BGA rework station offering precision, durability, and versatility. Whether you’re repairing smartphones, laptops, or circuit boards, this station provides everything you need in one compact unit—saving space while maximizing productivity.
