Description

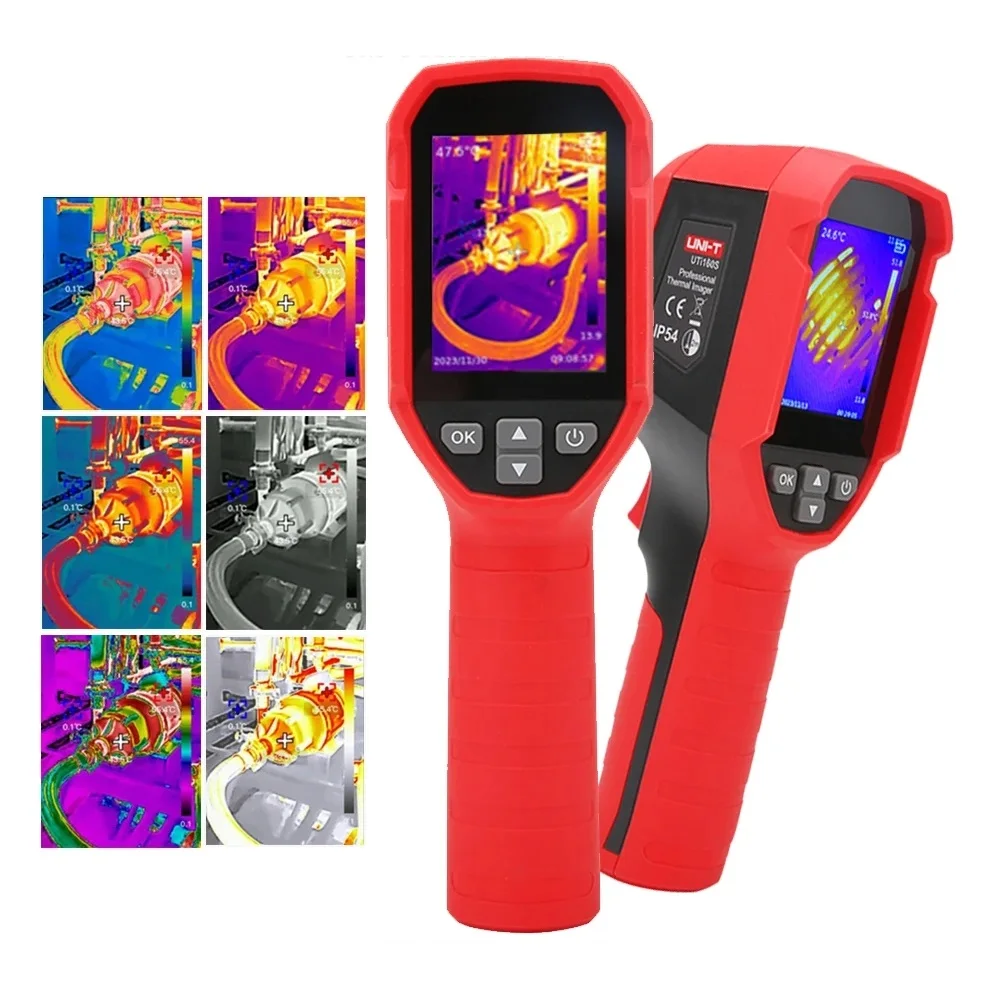

UTi160S Handheld Infrared Thermal Imager – Precise Temperature Measurement and Detailed Imaging

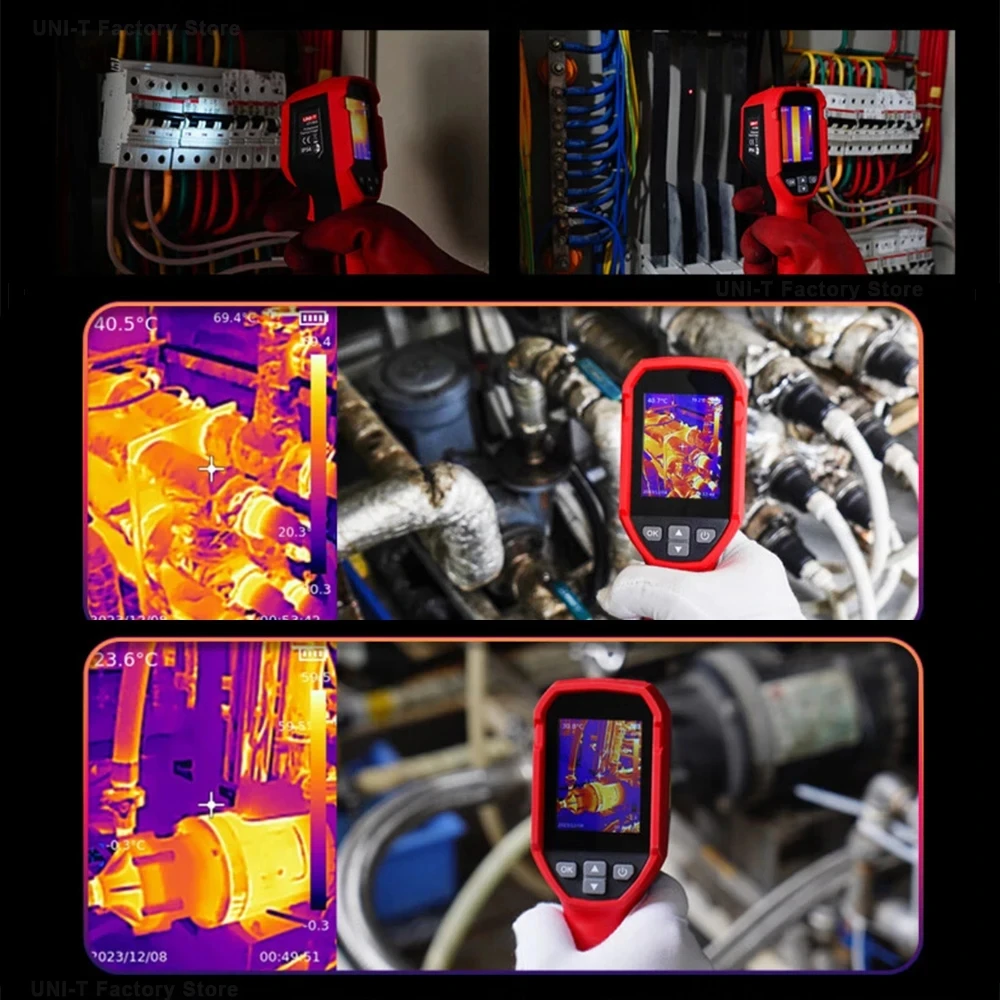

Introducing the UTi160S Handheld Infrared Thermal Imager, a versatile and economical device designed for professionals who require accurate temperature measurement and infrared imaging in various work environments. This compact and portable tool offers a wide range of features that make it perfect for a variety of applications, from industrial maintenance to electrical diagnostics and beyond.

Main Features:

Infrared Resolution: Capture sharp and clear thermal images with a 160 × 120 resolution.

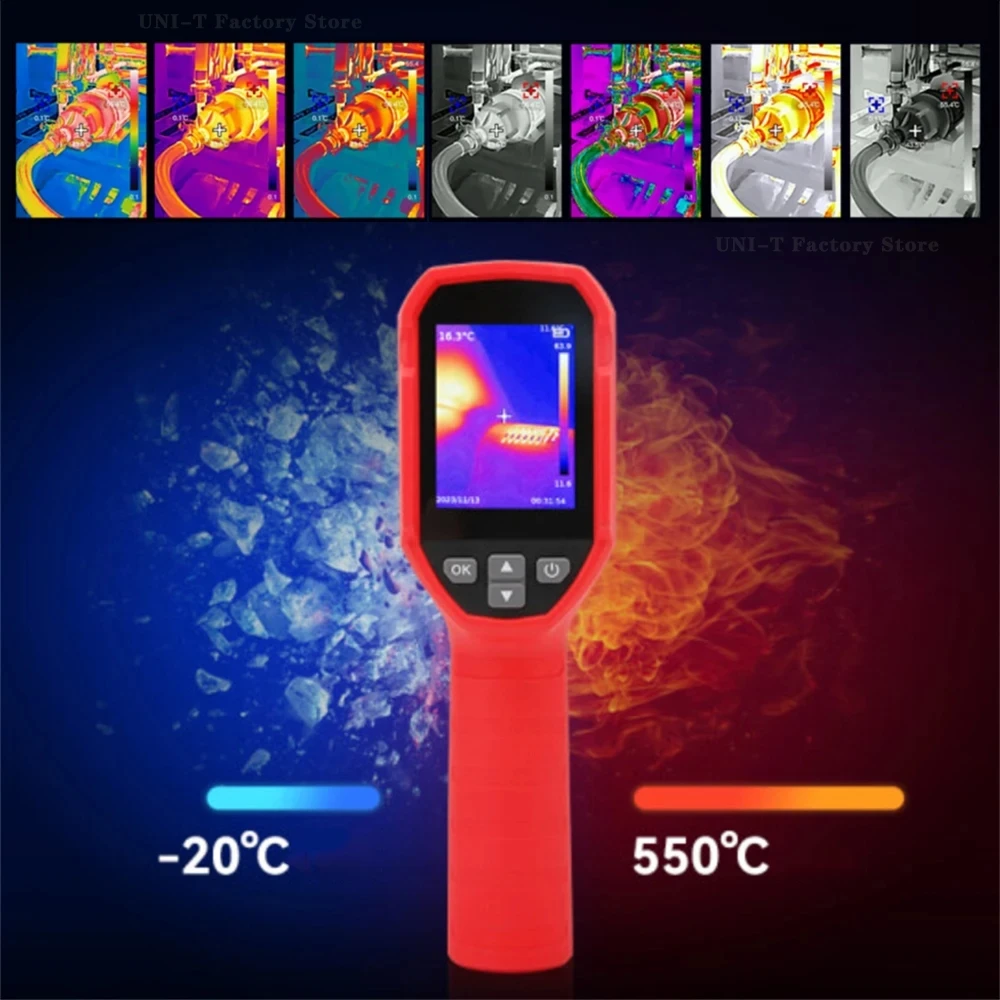

Temperature Measurement Range: Accurately measure temperatures from -20°C to 550°C (-4°F ~ 1022°F) with 0.1°C resolution for precise readings.
Automatic High & Low Temperature Tracking: Track temperature variations and focus on critical hot and cold spots in real-time for effective troubleshooting.

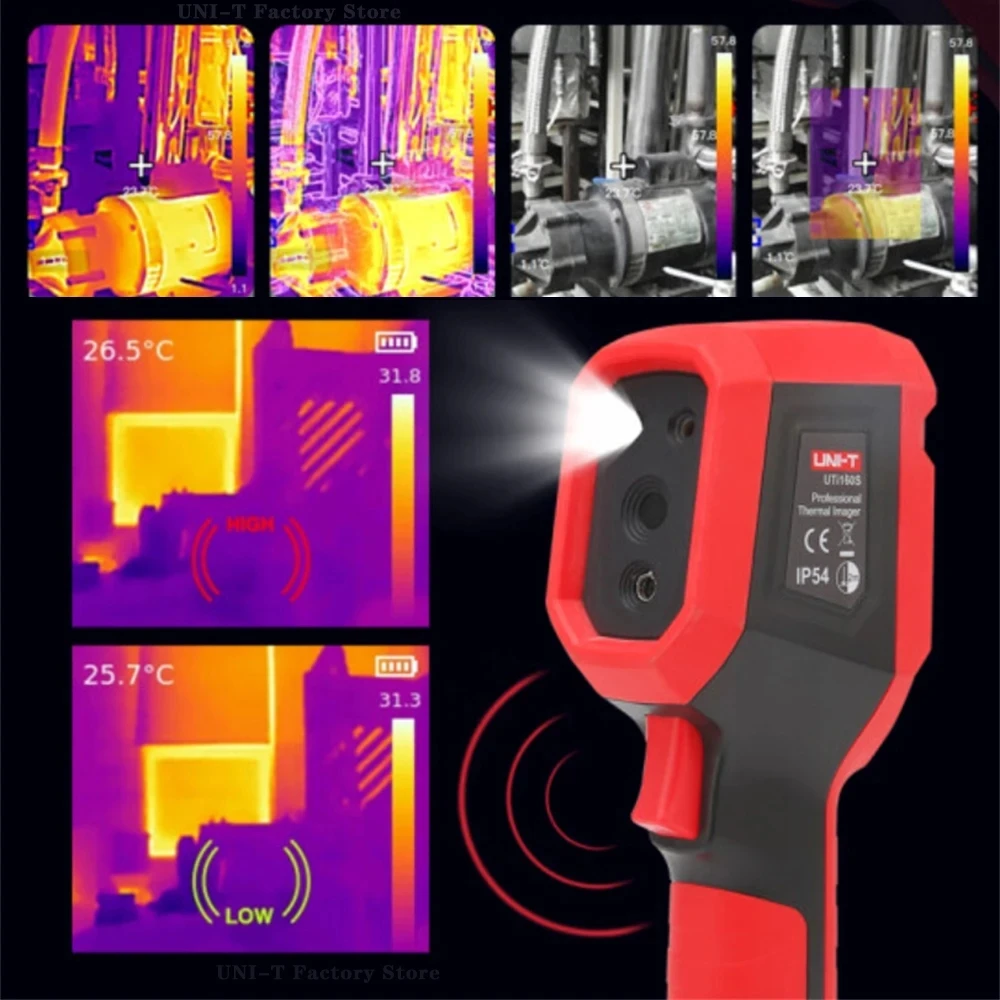

Multiple Imaging Modes: Switch between thermal imaging, T-Mix fusion, picture-in-picture, and visible light for enhanced visibility and better context during analysis.
High and Low Temperature Alarm: Receive visual (image) and audible (buzzing) alarms, plus flashing LED indicators for quick alerts on critical temperature thresholds.
Laser Indicator and LED Lighting: Equipped with a laser pointer and LED light, making it easier to pinpoint exact areas and provide better visibility in low-light environments.
Built-in Storage: Store up to 28GB of images and data, giving you plenty of space for long-term monitoring and analysis.
IP54 & Anti-Drop Design: With an IP54 rating and a two-meter anti-drop feature, this thermal imager is built to withstand tough working conditions.

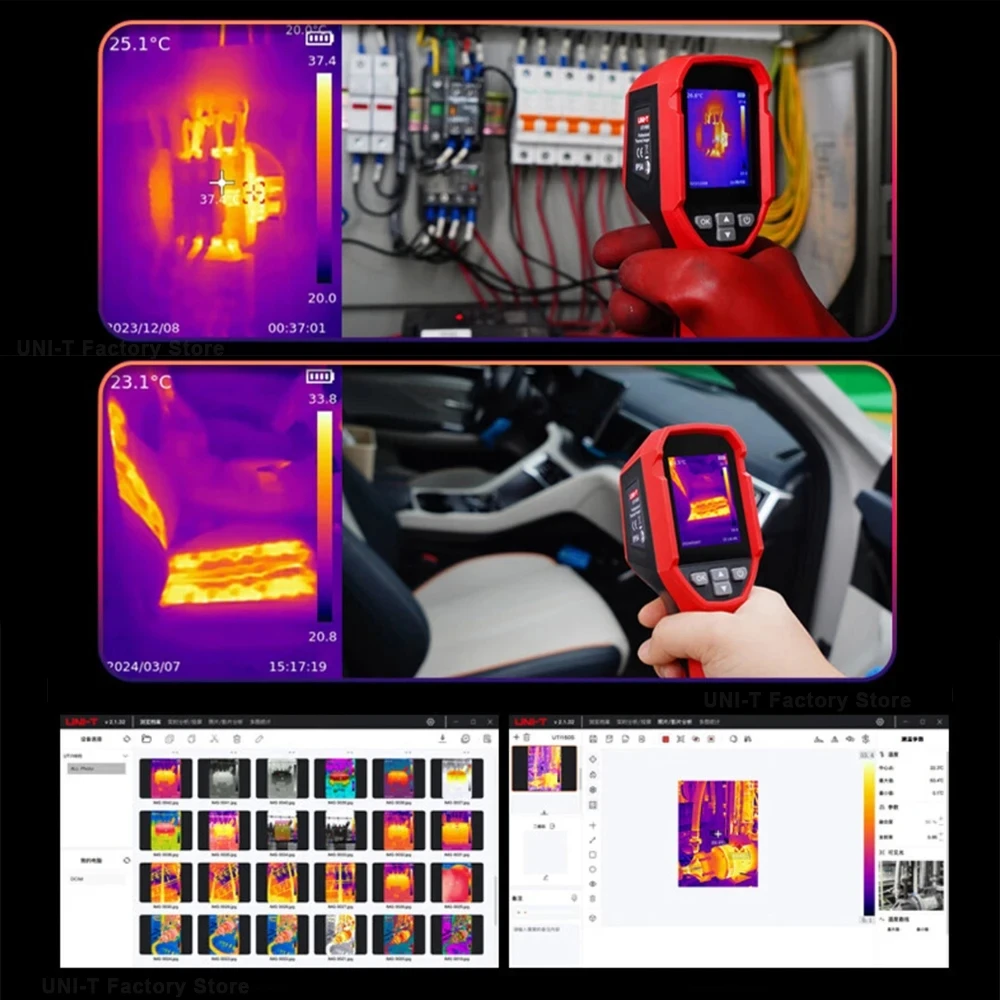

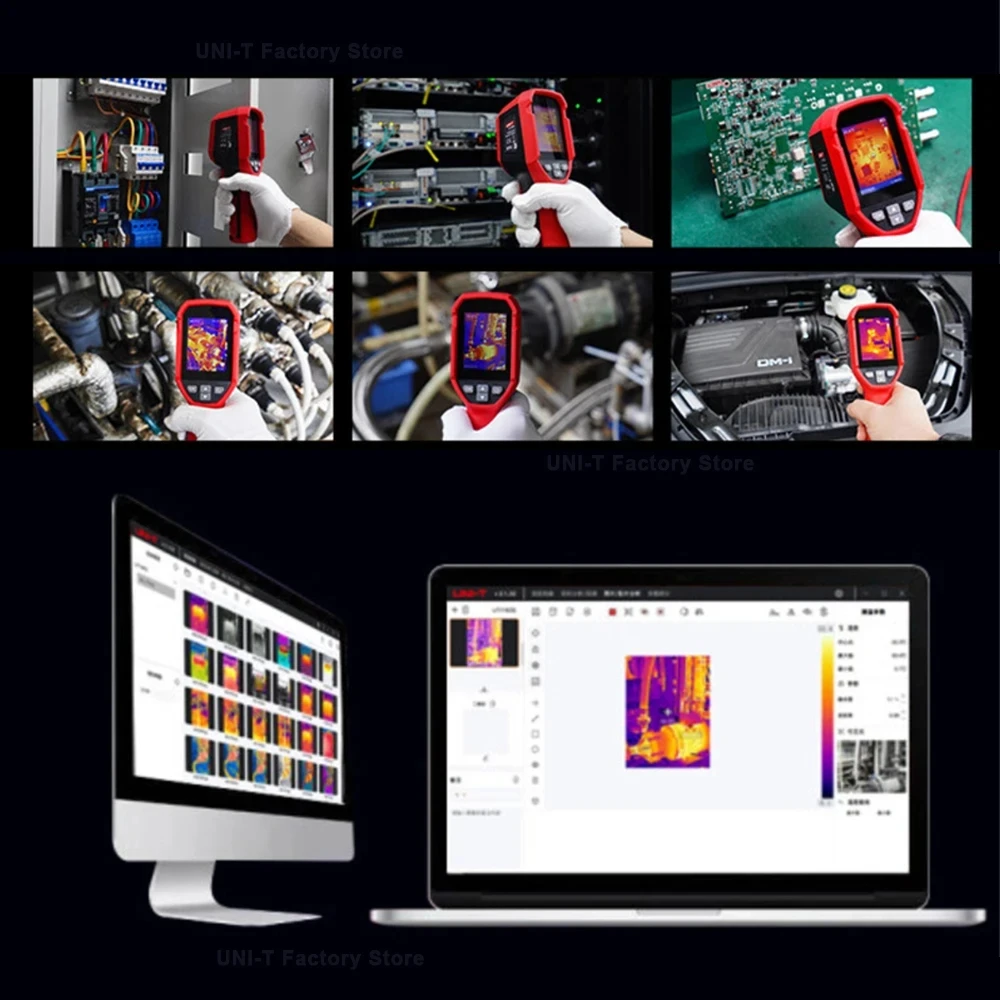

PC Super-Resolution Analysis: Use the included PC analysis software for in-depth image processing and detailed analysis.
Adjustable Emissivity: Set the device’s emissivity to match the surface material for more accurate readings (default is 0.95, adjustable from 0.1 to 0.99).
Versatile Mounting Options: The ¼-inch screw holes on the bottom allow you to easily mount the imager on a tripod for stable, hands-free use.

Product Specifications:

Detector Type: Non-cooled infrared detector
Pixel Spacing: 12 μM
Field of View: 40° H x 30° V
Thermal Sensitivity (NETD): ≤ 50mK
Battery Type: 18650 3.7V 2600mAh rechargeable lithium battery
Charging: Type-C direct charging
Display: 2.4″ TFT screen with 320 x 240px resolution
Color Palettes: Iron Red, Rainbow, White Heat, Black Heat, Red Heat, Lava, High Contrast Rainbow
Image Formats: JPG
Dimensions: 197 x 72 x 60 mm
