689BT scan tool newly adds ECU Coding The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc. But please note, ecu coding are NOT universal for all vehicles, please check compatibility with VIN number before purchase.

You can modify the adaptive data for vehicle control modules, after repairs or replacements of vehicle parts including power window, illuminated entry, warning, light control, slide roof, air conditioner, and more.

✔ ECU Coding: Helps re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.

After we replace ECU modules, defective units, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Follow the strict procedures of the manufacturer to match, learn, code, and program it until it functions normally. Warm Tips: Before coding, please read and record the original module’s information.

✔ ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.

✔ ECU coding helps to flash some hidden features for vehicles and disable the car’s annoying functions. such as changing the interior light, activating cornering headlights with fog lights, and deactivating buzzing sounds when locking the door, etc.

ECU Coding Compatibility:

Offline Programming (Variant Coding): BENZ,  Ford, Mazda, Vauxhall, Opel, etc.
Flash Hidden Functions: Benz, BMW, VW, Audi, Skoda, SEAT, Porsche, Jeep, Dodge, Chrysler, Toyota, Honda, etc.

If you are worrying about getting overcharged by repair shop without knowing problems, just let THINKSCAN 689BT to help you!

THINKSCAN 689BT has the ability to access all available system and subsystems codes, and perform a comprehensive scanning on ECUs: Engines/Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip coding/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics, etc.

It supports the detailed Function :
–read fault codes: read and decode the DTCs to identify where the fault location is;
–clear fault codes: erase the DTCs to turn off the MIL after repairs;
–retrieve ecu information: allows you to retrieve vehicle information;
–Graph live data stream: view the dynamic data stream to determine vehicle condition

With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:
For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.
For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.
For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.
For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.
For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.

【CANFD&DOIP+FCA AUTOAUTH+V.A.G GUIDED】

Thinkscan 689BT is compatible with CANFD protocol  for SGM, GM, Chevrolet,CHRYSLER. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

DOIP Protocol for BMW (F&G chassis), Volvo (2018-), Land Rover&Jaguar (2017-)；

Autoauth for FCA SGW, supports Chrysler, Jeep, Dodge, Fiat etc. 2017 and later；Guided Function for Volkswagen/Audi/Skoda/Seat, provides step-by-step repair guidance for you, prevent car fault setting caused by wrong operation.

Support CANFD vehicles below vehicles:

SGM CAN FD models:

LSGEP2020-Encore (SAIC VIN:LSGEP) CANFD (6&14)

LSGKB52020-New Cruze (VIN:LSGKB5) CANFD

LSGEN52020-New Cruze (VIN:LSGEN5) CANFD

LSGUL2020-GL8 luxury business car LSY (VIN:LSGUL) CANFD3&11, CAN6&14

LSGEM2020-Chuangku (VIN:LSGEM) CANFD

LSGUA2021-GL8 commercial vehicle (VIN:LSGUA) CANFD3&11, CAN6&14

LSGEN2021- New Cruze (VIN:LSGEN) CANFD

2022-Verano ProCANFD

CT4 (Programming function) CANFD

CT5 (Programming function) CANFD

GM CANFD models

[2021][Chevrolet][Onix]CANFD6&14

[2021][Chevrolet][Tracker]CANFD6&14

[2021][Chevrolet][Suburban]CCMA

[2021][Cadillac][Escalade ESV]CCMA

[2021][Cadillac][Escalade]CCMA

[2021[GMC][YUKON XL]CCMA

[2021[GMC][YUKON]CCMA

[2023][Chevrolet][Montana]CANFD6&14

[2024][Buick][Electra E5]VSIM

[2024][GMC][Sierra] H/UTCM 10 Speed (MGM)/10 Speed (MGU)

[2021][Chevrolet][Onix]All systems

[2021][Chevrolet][Tracker]All systems

[2021][Chevrolet][Suburban]CCMA

[2021][Cadillac][Escalade ESV]CCMA

[2021][Cadillac][Escalade]CCMA

[2021[GMC][YUKON XL]CCMA

[2021[GMC][YUKON]CCMA

[2023][Chevrolet][Montana]All systems

[2024][Buick][Electra E5]VSIM

[2024][GMC][Sierra] H/UTCM 10 Speed (MGM)/10 Speed (MGU)

CHRYSLER Models:

2021-2024 Grand Cherokee(WL)

2022-2024 Grand Wagoneer

Support DOIP Protocals

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes 689BT save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).

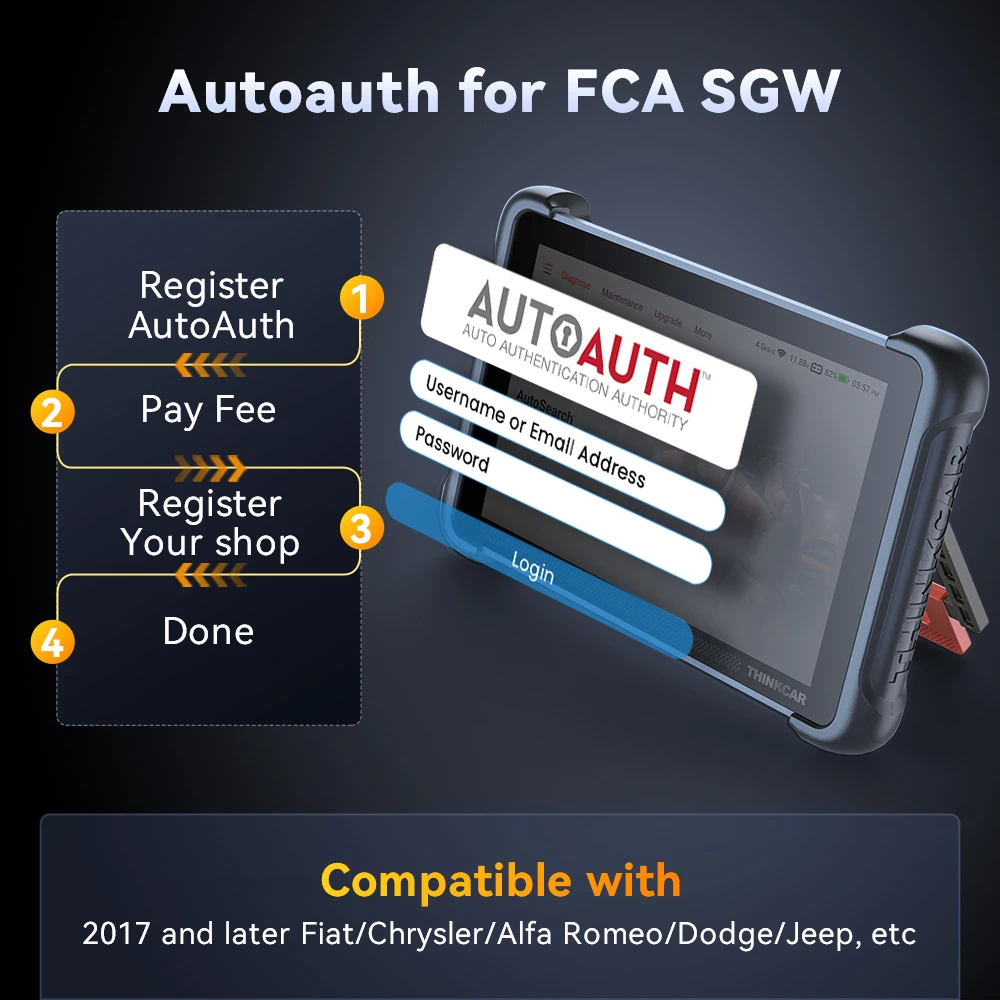

Support Auto Auth for FCA SGW Access
The vehicles with security gateways are mainly the following vehicles: Chrysler series, Maserati series, Fiat series, Renault series, Nissan series, Mercedes-Benz series, Volkswagen series.

Without unlocking the security gateway, you can only read fault codes, read data streams, and read version information. You cannot clear fault codes, and there are no special functions, etc. After unlock FCA also supports special functions such as action testing, maintenance reset, key matching, etc.

THINKCAR European FCA Purchase:www.thinkcar.com

Remarks: Only for European region. For the United States users, please unlock FCA from AutoAuth.

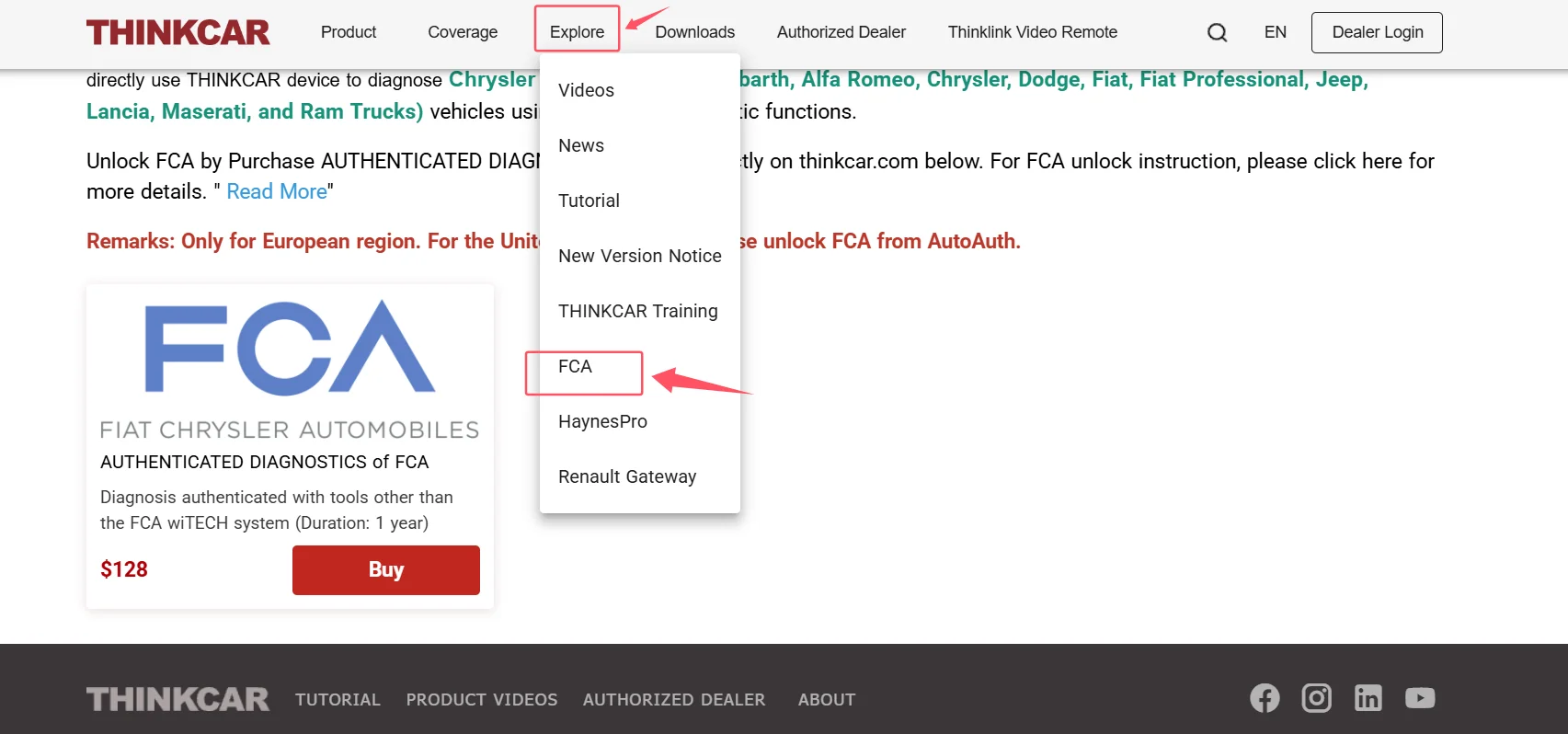

1. Enter the official website and click “Explore”

2. The menu bar appears, click “FCA”

3. 128USD/year

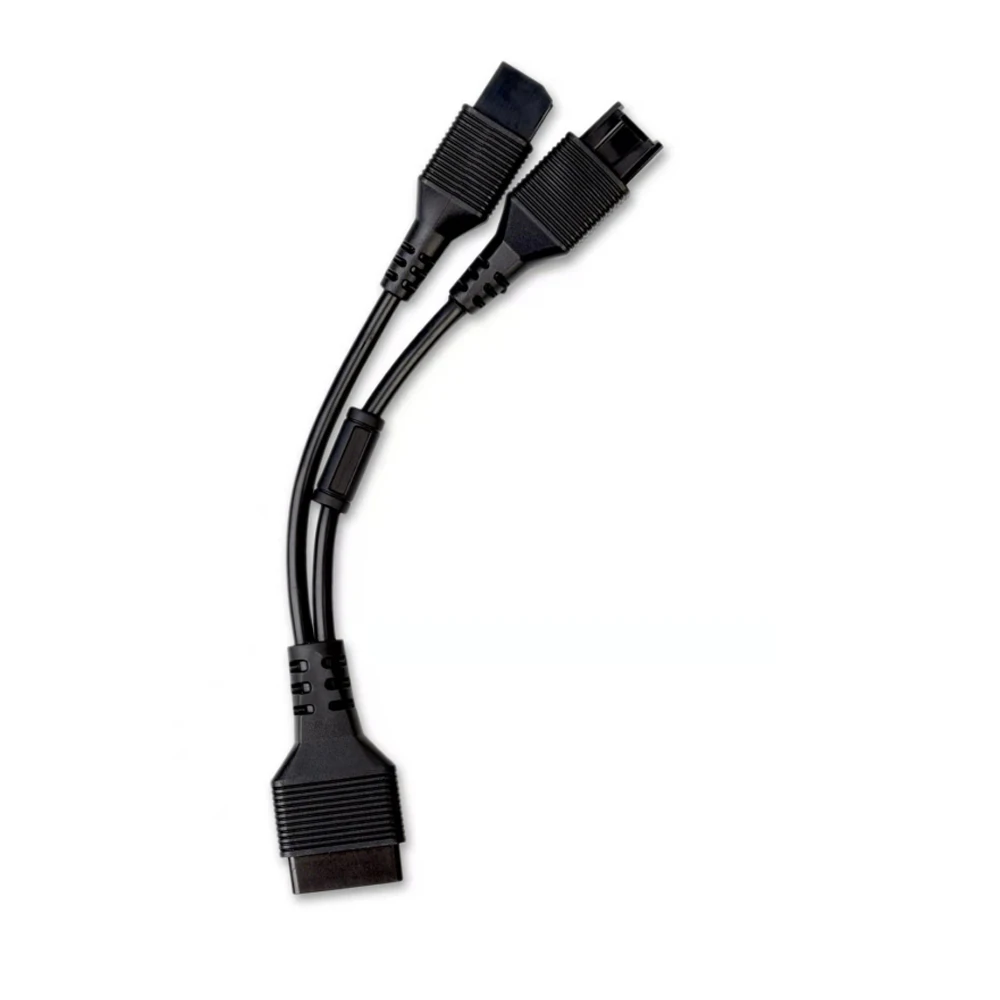

Use Chrysler 12+8 adapter to Unlock Gateway for Vehicle brands below:

2018 and later Chrysler: 300, Grand Voyager

Dodge: Challenger, Charger, Durango, Journey, Ram 1500, Ram 2500, Ram 3500, Ram 4500, Ram 5500

JEEP: Grand Cherokee, Renegade, New Wrangler (JL), Grand Commander

2019 and laterJEEP: Cherokee, Compass

2020 and laterJEEP: Gladiator

2018 and laterAlfa Romeo: GIULIA

Fiat: 500L, 500X, 500, Novo Uno fl, Toro

2018 and laterMaserati series

Note: 12+8 menu prompts, there are no English prompts, only the entrance to log in to FCA in English.

Nissan Series

B18 chassis Nissan models (14th generation Nissan Sylphy, Sentra)

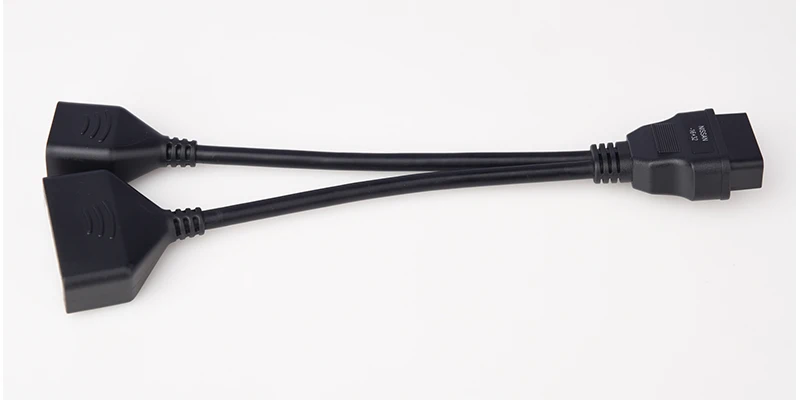

Currently, you need to use Nissan 16+32 adapter cable to release the security gateway module.

There is no need to purchase an account or any physical method. The main thing is software authorization, and the main thing is that the equipment hardware needs to support the DOIP protocol. The DOIP protocol requires the manufacturer’s authorization, but it is not enabled on the English version of the software. Without authorization, if customers want to diagnose these models, they must switch to other languages for diagnosis. Japanese, Korean, Traditional Chinese, and Simplified Chinese are all acceptable.

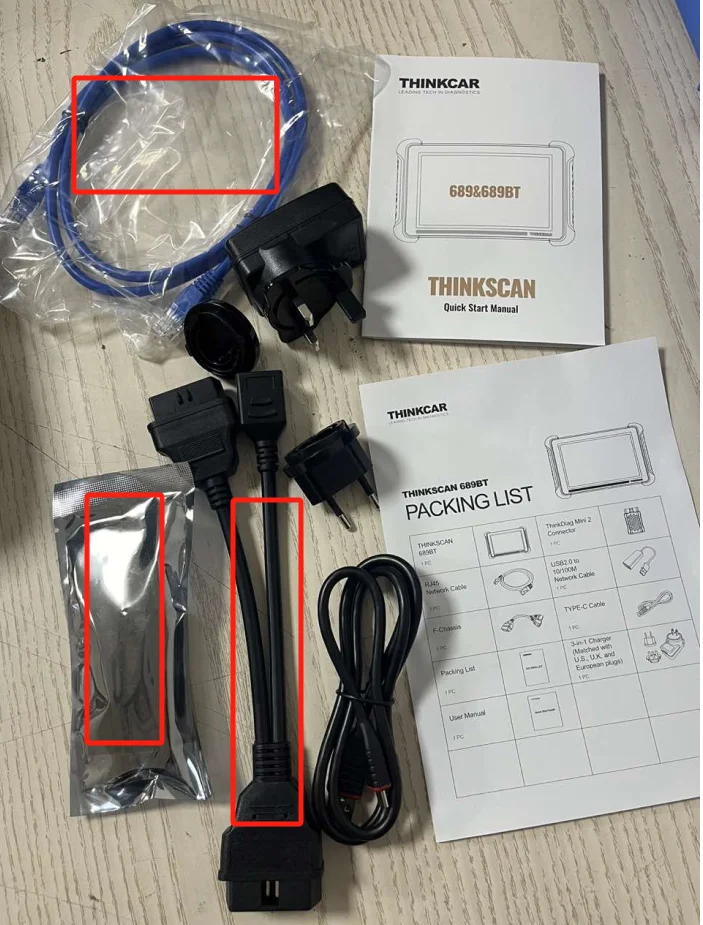

Mercedes-Benz W223, W206 chassis, BMW F/G chassis use below 3 cables for DOIP protocal.

Volkswagen Series

2020~2023 Golf 8

2021~2023 Land Cruiser

2021~2023 Land Cruiser

2022~2023 Lingdu L

2022~2023 New Weiran

ID.4 CROZZ, ID.6 CROZZ

ID.3, ID.4X, ID.6X

Audi Series

2020~2023 Audi A3L

Q2 e-tron, Q4 e-tron, Q5 e-tron

Skoda Series

2021~2023 Octavia PRO

The above models are equipped with Volkswagen SFD security gateway module, which needs to be unlocked for diagnosis. The diagnostic software has a login entrance. If the customer has a token code, it can be unlocked.

Renault/Dacia Gateway Unlock

The online gateway function of Renault models is similar to that of FCA. They are both online security gateways. If they are not unlocked, only read operations (reading fault codes, data streams, version information, etc.) can be performed, and write operations (clearing codes, setting codes, programming, etc.) cannot be performed. Renault online gateway unlocking is to temporarily unlock the vehicle using the software provided by the Renault original factory. After unlocking, the fault diagnostic instrument can be used on the Renault car to perform write operations: such as action testing, programming, setting codes, anti-theft and initialization functions.

If you need Renault/Dacia Gateway Unlock Function:

Please contact our online customer service about purchasing T-CODE in exchange for the corresponding unlocking license.

120+ Car Brands,1000+ Car Models Supported!

√ CANFD Protocol Supported- Compatible with GM models (2020 and later). (No need to buy adapters.)

√ DOIP Protocol Supported- Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).(No need to buy adapters.)

√ FCA AUTOAUTH- For 2017 and later FCA Vehicles with Secure Gateway Module (SGW): You can Register with AutoAuth to communicate with the FCA SGW Authentication System and by pass the SGM, so as to perform diagnostics and bi-directionals without using a bypass cable.

Amarica Car Models:

For FORD, For LINCOIN, For GM, For BUICK, For CADILLAC, For CHEVROLET, For CHRYSLER, For DODGE, For JEEP, For HM, For MERCURY, For PONTIAC, For SATURN, For TESLA;

Europe Car Models:

For BENZ, For SMART, For SPRINTER, For BMW, For VW, For SKODA, For AUDI, For OPEL, For LAMBORGHINI, For PORSCHE, For MAYBACH, For EURO FORD, For LANDROVER, For DR, For BENTLEY, For ROVER, For MINI, For VAUXHALL, For FERRARI, For FIAT, For LANCIA, For ALFA, For ROMEO, For MASERATI, For BUGATTI, For PEUGEOTCITROEN, For RENAULT, For SAAB, For VOLVO, For OPEL, For DACIA,For SEAT, For ABARTH, For RENAULT, For ROLLS-ROYCE, For SAAB, For SKODA, For SMART, For VOLVO;

Asia Car Models:

For Acura, For DAEWOO, For HOLDEN, For HONDA, For HYUNDAI, For INFINIT, For ISUZU, For KIA, For LEXUS, For MAZDA, For MITSUBISHI, For NISSAN, For SCION, For SSANGYONG, For SUBARU, For SUZUKI, For TOYOTA, For BYD, For CHERY;

Malaysia Car Models:

For PERODUA (PERODUA), For PROTON ;

IRAN Car Models:

For IKCO, For MVM, For SAIPA;

Australian Car Models:

For AUSFORD, For HOLDEN ;

India Car Models:

For TATA, For MARUTI, For MAHINDRA, For INDIA HM

More car models, please contact us for details.

【ENHANCED 34 MAINTENANCE FUNCTIONS】

689BT diagnostic tool can perform 34 frequently-used maintenance resets on Service Function option that every mechanic wants, such as Oil Reset, ABS Bleeding, Electronic Throttle Reset, Gearbox Reset, Battery Matching, etc. You will get 100+ hidden advanced functions under Vehicle Brand > System>Special functions, such as Zero-Point Calibration, HVAC/Seat/SUS Calibration, etc.

👉👉👉Attention !!! NOT ALL Reset Service work for All Car Models. Please contact seller with the vehicle Make/Model/Year/Vin before purchase to make sure the desired functions are compatible with your cars.

1. Oil Reset: reset the oil life system and turn off the oil light after oil or oil filter replacements.
2. EPB: reset the brake pad after replacing the brake pad, the servo motor, etc., deactivate/activate the brake control system, assist with brake fluid control, open and close brake pads, etc.
3. TPMS: reset the tire pressure and turn off the tire pressure fault indicator.
4. BMS: reset the monitoring unit of the car battery after replacing the battery or battery monitoring sensors.
5. DPF Regeneration: clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.
6. IMMO Keys: disable the lost vehicle keys and program the replacement key fob. ONLY For some Asian and American cars with low-grade IMMO.
7. Injector Coding: write the actual code of the fuel injection nozzle or rewrite the code in the ECU to the code corresponding to the fuel nozzle of each cylinder after replacing the ECU and the fuel injector, to accurately control or correct the fuel injection amount of each cylinder.
8. SAS Calibration: calibrate the steering angle after replacing steering-related parts.
9. Suspension Level Calibration: adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
10. Throttle Adaption: Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state.
11. Sunroof Initialization: initialize the sunroof data to set the sunroof to lock off, close in rain, memory function of sliding/tilting sunroof, outside temperature threshold, etc.
12. Seats Calibration: specially designed for the seats with memory functions. Match the seat after repairing or replacing the seat.
13. ABS Bleeding: Help exhaust the air.

14. Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality.

15. Gear Learning: Monitors certain camshaft position sensors signals.

16. Tire Reset: Set the size parameters of the modified or replaced tire.

17. A/F Reset: Set or learn Air/Fuel ratio parameters.

18. Adblue Reset(Diesel Engine Exhaust Gas Filter): Reset urea after the diesel exhaust treatment fluid is replaced or filled up.

19. Coolant Bleeding: Activate the electronic water pump.

20. Nox Sensor Reset: Reset catalytic converter learned value stored in ECU.

21. ODO Reset: Copy, write or rewrite the kilometer value, only few cars compatible, check with seller compatibility.

22. SRS(Airbag Reset): Resets the airbag data to clear the airbag collision fault indicator.

23. Transport Mode: Deactivate the transport mode.

24. Windows Calibration: Perform door window matching to recover ECU initial memory.

25. Language Change: Change vehicle system language.

26. EGR Adaption: Learn the Exhaust Gas Recirculation valve after being cleaned.

27. Stop/Start Reset: Set up the automatic start-stop function in ECU.

28. AFS Headlamp Reset: Initialize the adaptive headlamp system.

29. Motor Angular Position Sensor Calibration.

30. Engine Power Balance.

31. High Voltage Battery Health Check.

32. Smart Cruise Control Calibration.

33. GPF Regeneration.

34. Automatic Air Conditioning Initialization.
