Description
Dear customers, please take a look:
① Our engineers have tested this product, our software is 100% compatible with the hardware product, our hardware is perfectly connected to the car, it works 100%.
② You must copy all the files to the computer for installation, it is recommended to put them in the C drive.
③ Before installation, you must turn off the computer’s antivirus software and computer firewall, otherwise you will lose a lot of important files!
④ Before installing the software, please watch the installation video, our tutorial is very clear and can help you well!
⑤ If you still encounter problems that you can’t solve by yourself, please contact us, professional after-sales service!

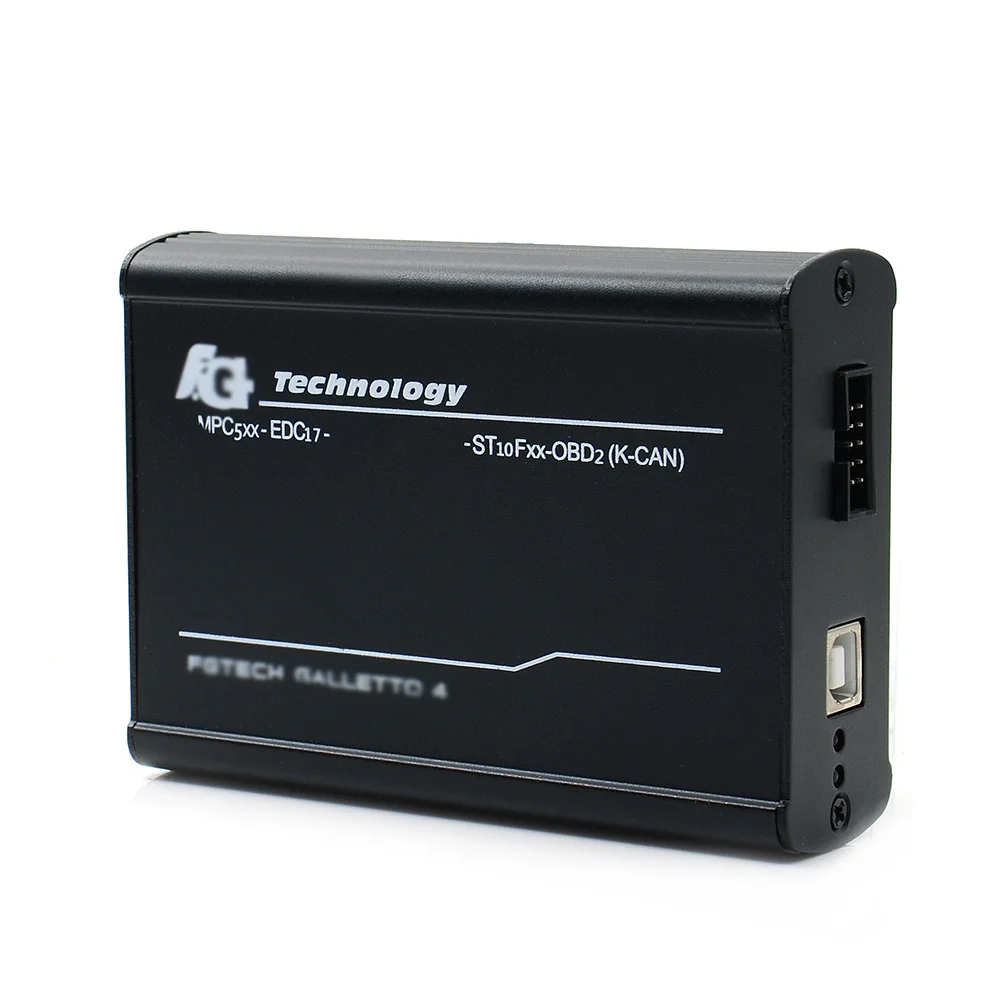

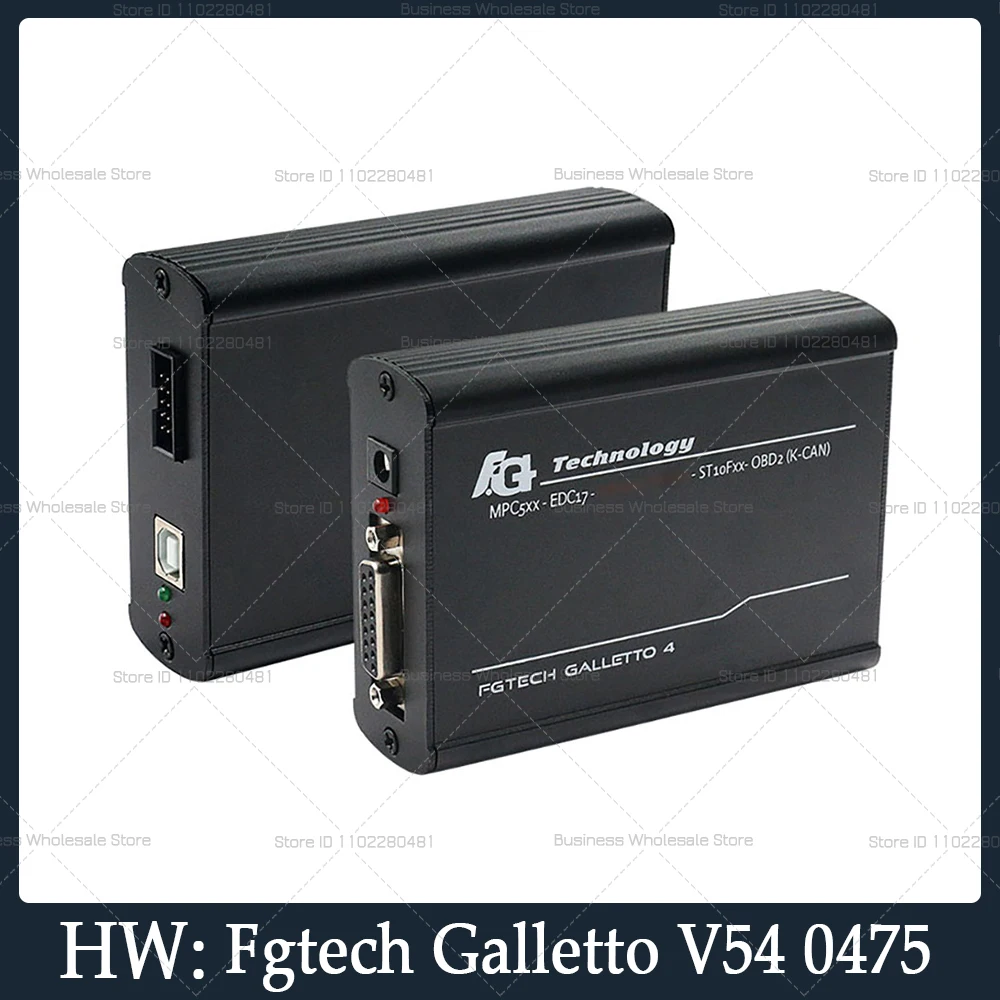

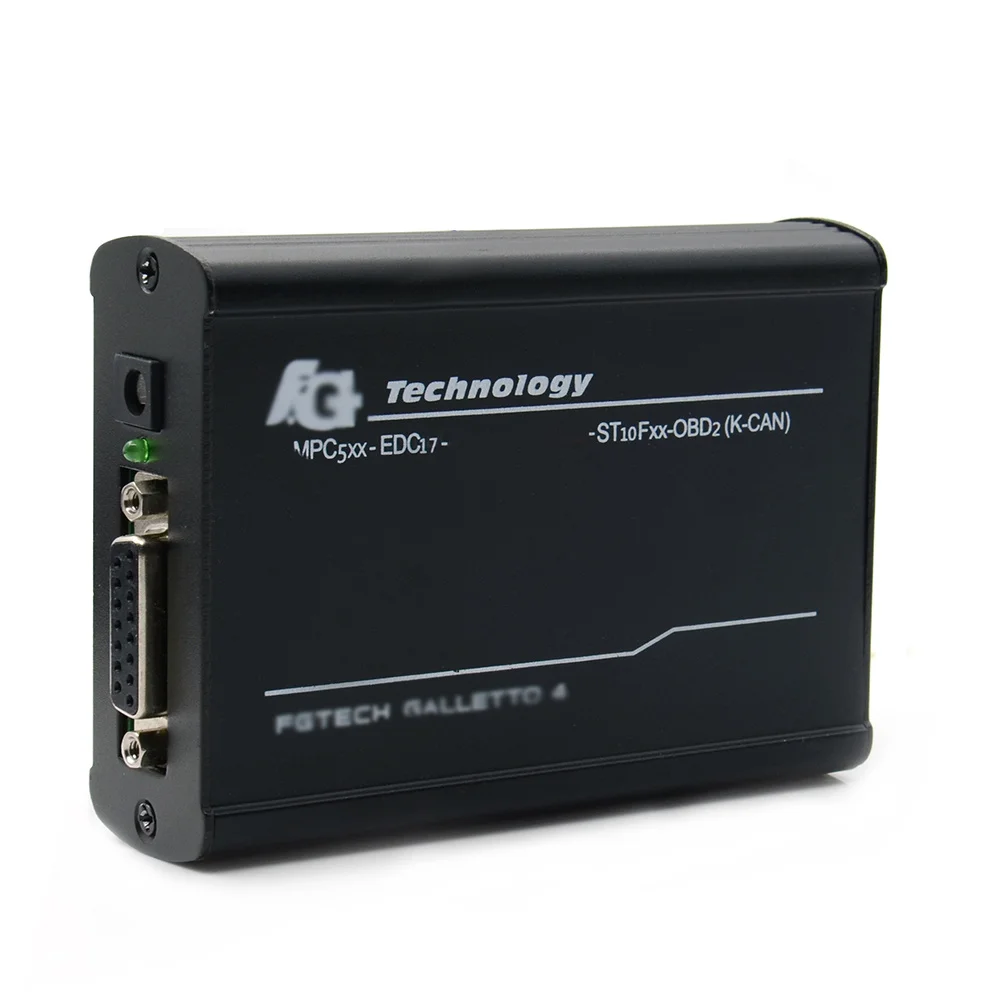

FGTech Galletto 4 Master v54, a famous chip tuning tool, is a new system developed using high-speed USB2 technology. It is the fastest and safest product on the market, equipped with BDM MPCxx, boot mode system, and automatic checksum. Suitable for cars, trucks, motorcycles, and boats. Easy for anyone to install and use.
Matching software:
Name of software：FGTech Galletto V54
OS: Windows XP or Windows 7 32bits
Features:
1.Firmware Version : 0475 （Newest）
2.FGTECH V54 PCB board
3. Unlock version, can use directly, no need to activate.
4.Support Tricore Function
Function:
1.Recovery Mode Completa
2.Funzione scan tool per eliminare i DTC
3.Function scan tool for erase the DTC
4.Controllo tensione di batteria auto in tempo reale
5.Check tension of battery car in real time.
BDM MPCxx：
1．5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
2．Can Bus V2.0 50Kb > 1000Kb
3．J1850 VPW PWM GM -Fo-rd
4．Rx Tx RS232,
5．RS 485,
6．Automatic setup Pull up K-L line 250, 500, 1000 ohm,
7．Automatic setup termination Can bus 0, 60,120 ohm.
Boot Mode System:
1．NEW JTAG – BDM – MOTOROLA – FREESCALE – INFINEON
2．Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 – Mair 8GMF
3．New Delphy DCM3.5xx DCM3.7xx TRW
4．Motorola Freescale MPC 555/556/561/562/563/564/565
5．Motorola MC 68332 – MC YQQCU – MC 68377 Trionic 5/7/8 GM-Op-el-SAAB
6．Motorola MC 68376 Campi 01 Lamborghini – Lotus
7．Motorola MC 68336 MEMS D5 ROVER
8．Motorola ZC 439615 – ZC 439507 IAW Fi-at – VAG
9．New Line OBD protocols VPM GM – Hummer-Corvette-Munstang-Blazer-Cadilac
10．New Line OBD protocols Tx-Rx – Suba-ru – Mitsubischi – Hitachi – Denso ecu
Automatic Checksum:
1．All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
2．Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens
3．Motorola MC68332 – MCYQQCU – MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
4．Motorola Freescale MPC 555/556/561/562/563/564/565
5．Freescale MPC 5553/5554/5565/5566
Supported languages:
Italiano, English, Deutsch, Français, Español, Português, Czech, Turkish

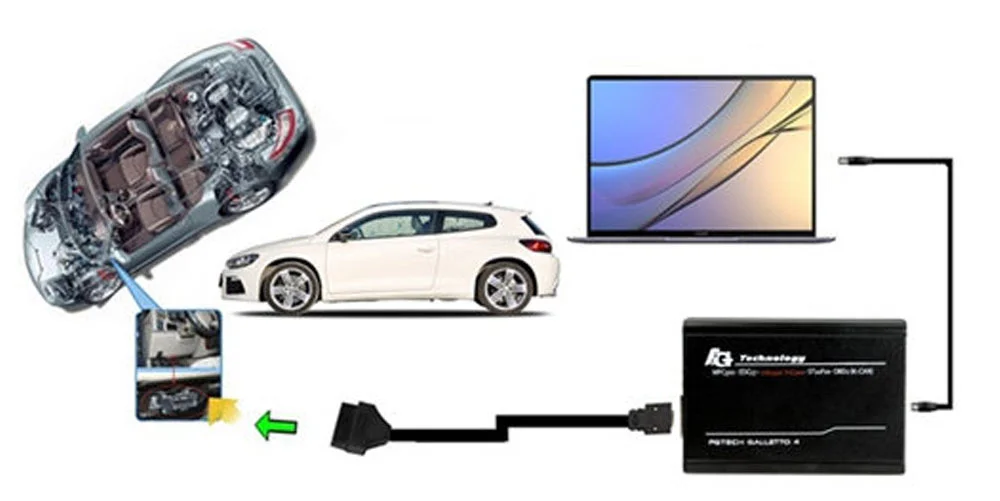

1.Connect via OBD Cable:

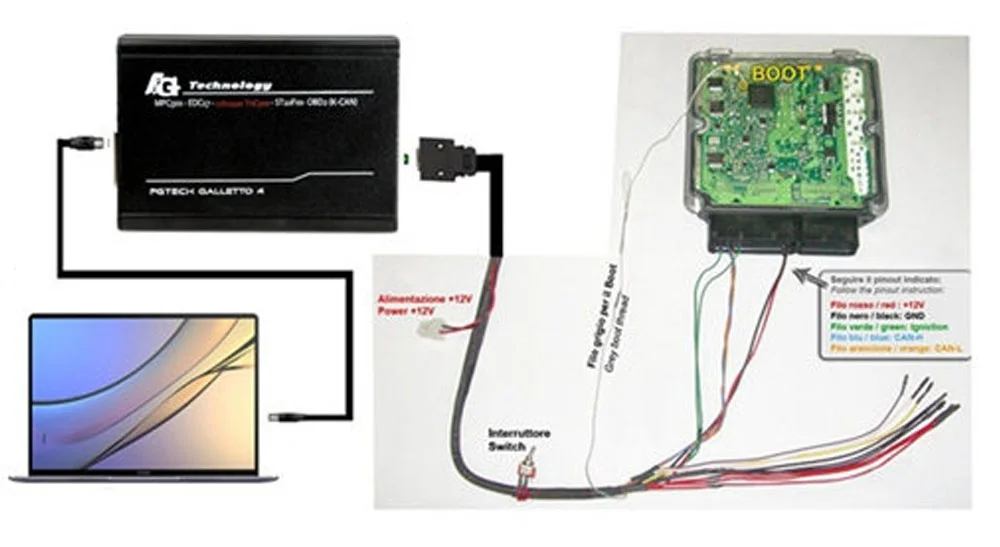

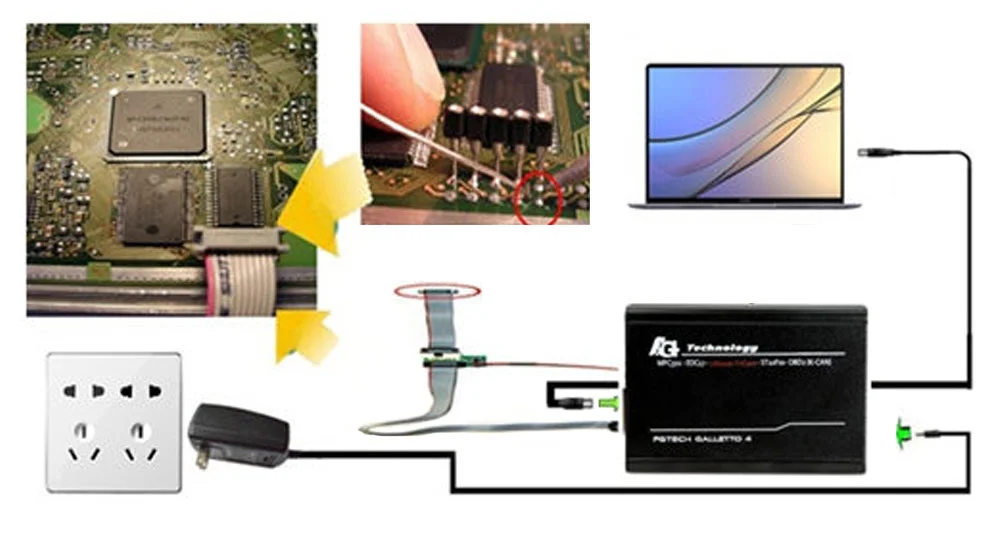

2.Connect via Boot Cable:
3.Connect via BDM Cable:
Q1: FGTech Galletto 4 can cancel E-G-R gestion via OBD?
A1: Sorry, at present it still can not do this function, it just can read and write the Data of Engine ECU
Q2: Can Fgtech V54 do this ecu Bosch EDC16 BMW(P3)?
A2: Yes, it can do.
Q3: After i install the software. it ask me to update it. can i ?
A3: Please do not update it. just close that notice.

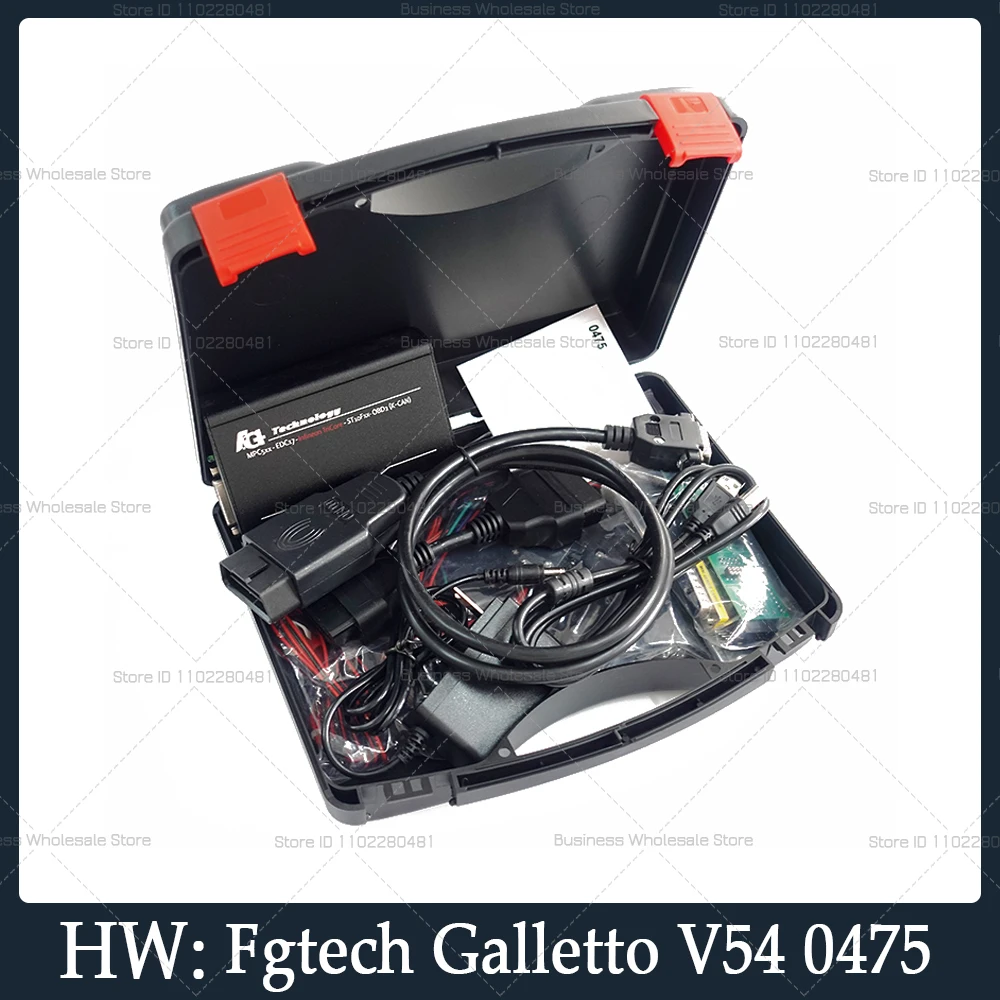

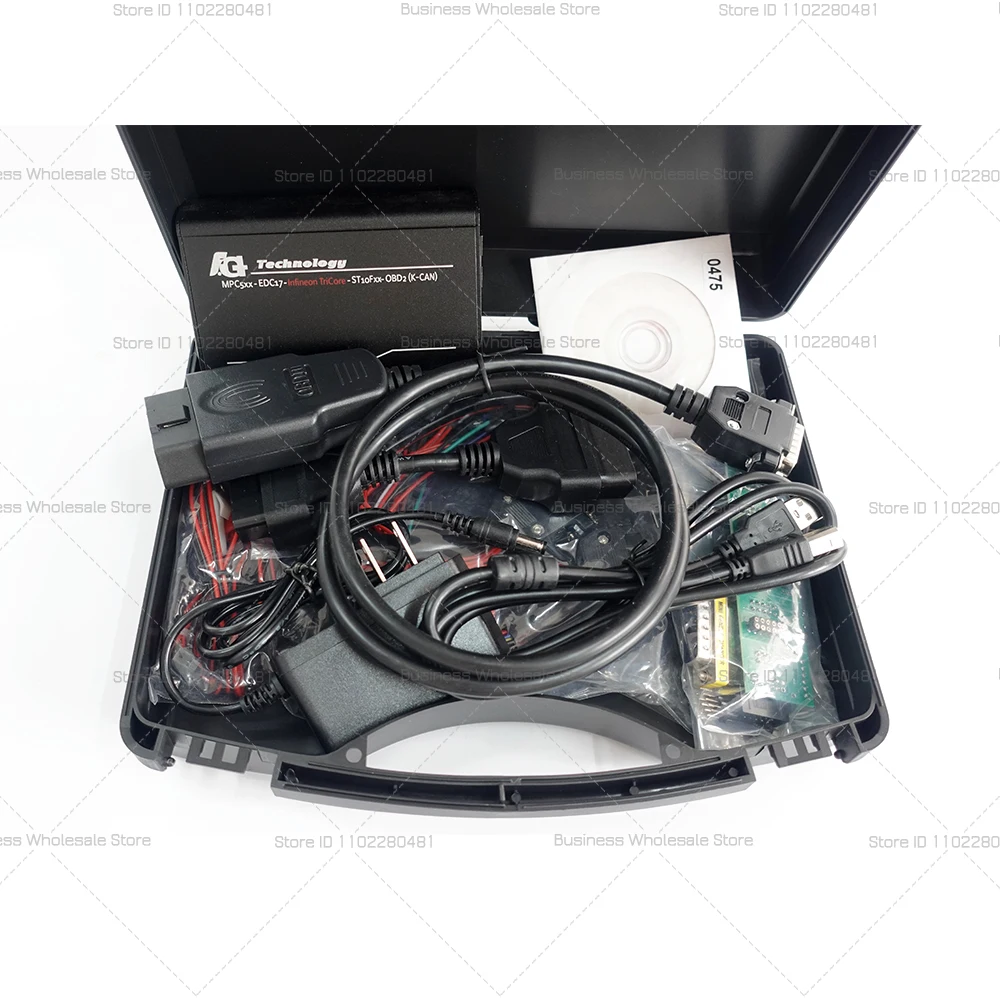

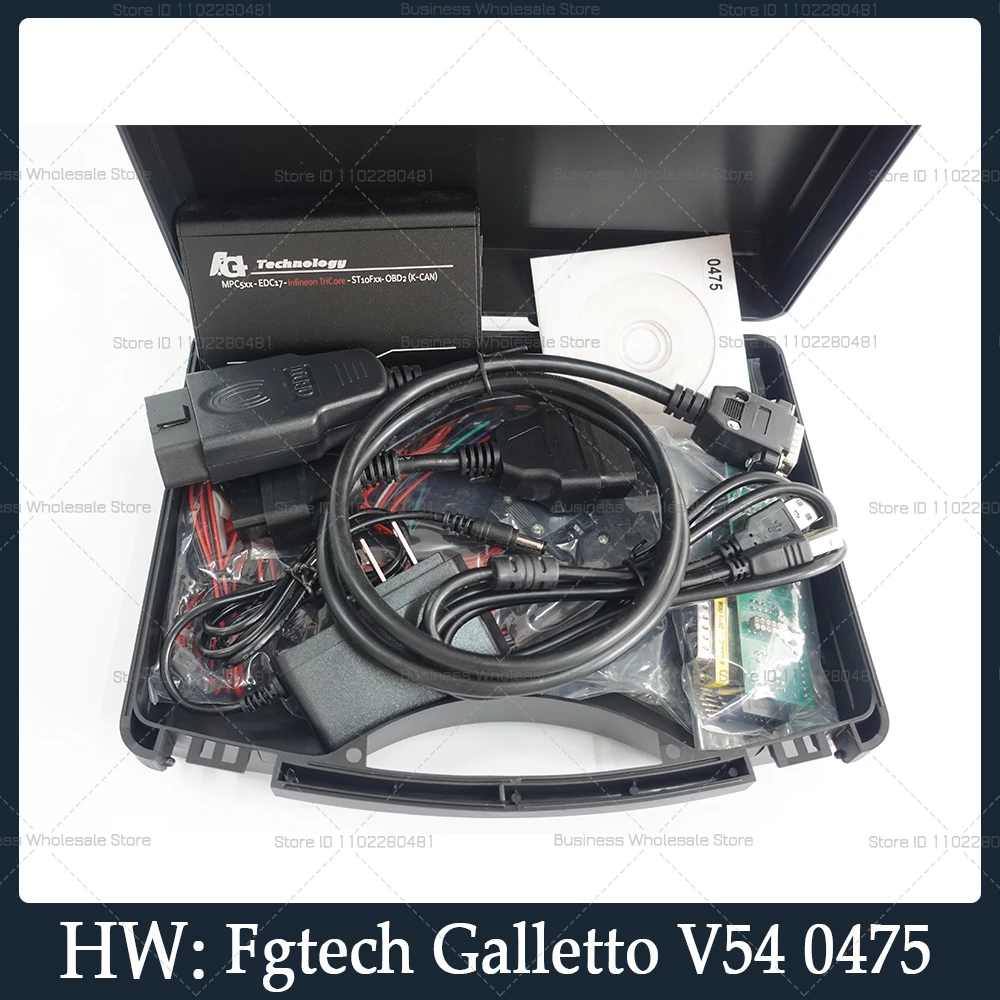

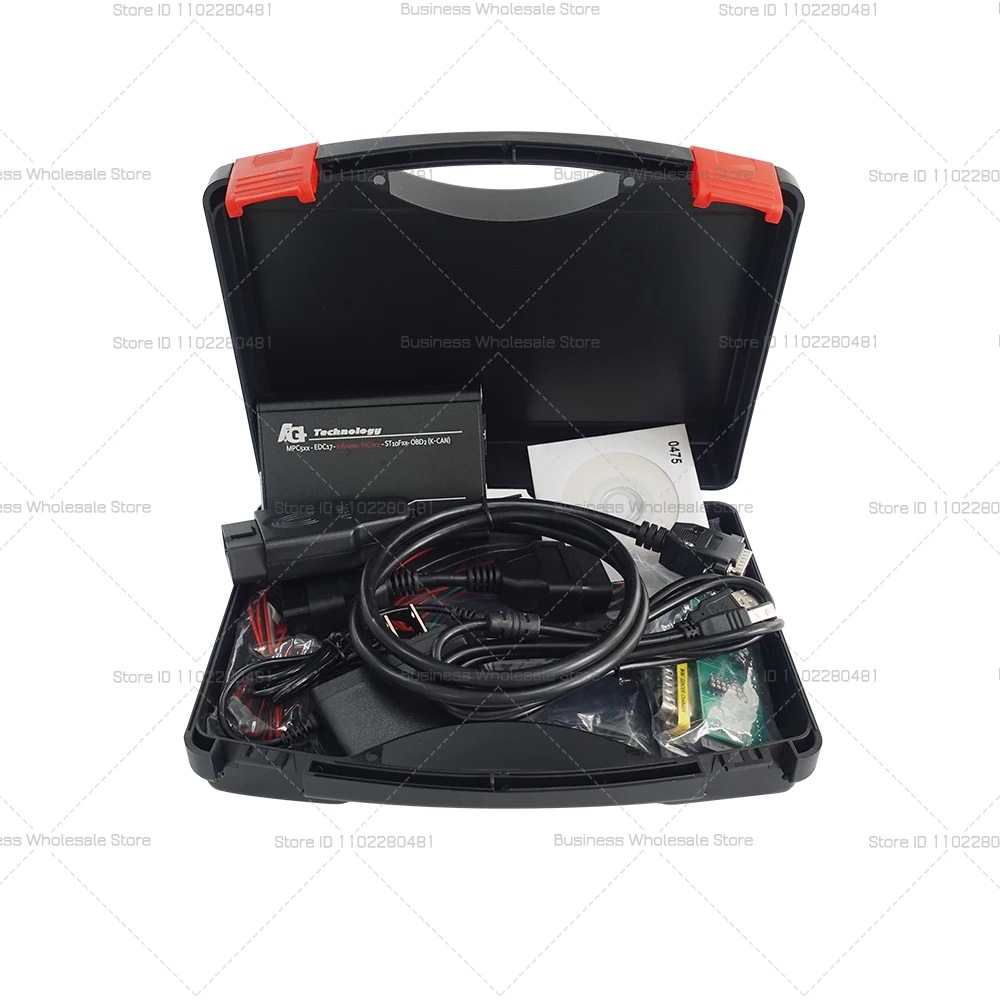

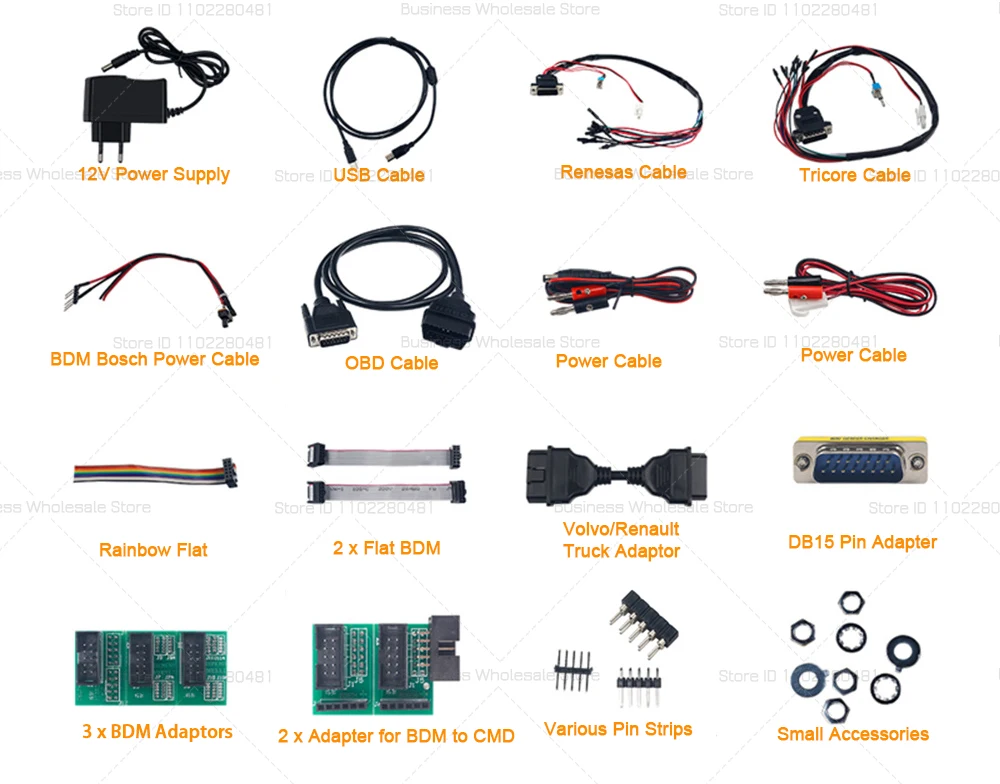

Package List:
1 x FGTECH Main Unit
1 x Power Adapter
1 x OBD2 Cable
1 x USB Cable
1 x Tricore Cable
1 x Renesas Cable
1 x Truck Adaptor
1 x Power Cable（Black head）
1 x Power Cable（White head）
1 x BDM Bosch Power Cable
2 x BDM Flat
1 x Rainbow Flat
3 x BDM Adaptors
2 x Adapter for BDM to CMD
1 x DB15 Pin Adapter
1set x Various Pin Strips
1set x Small Accessories
1 x CD / USB
1 x Carton Box / Plastic Box

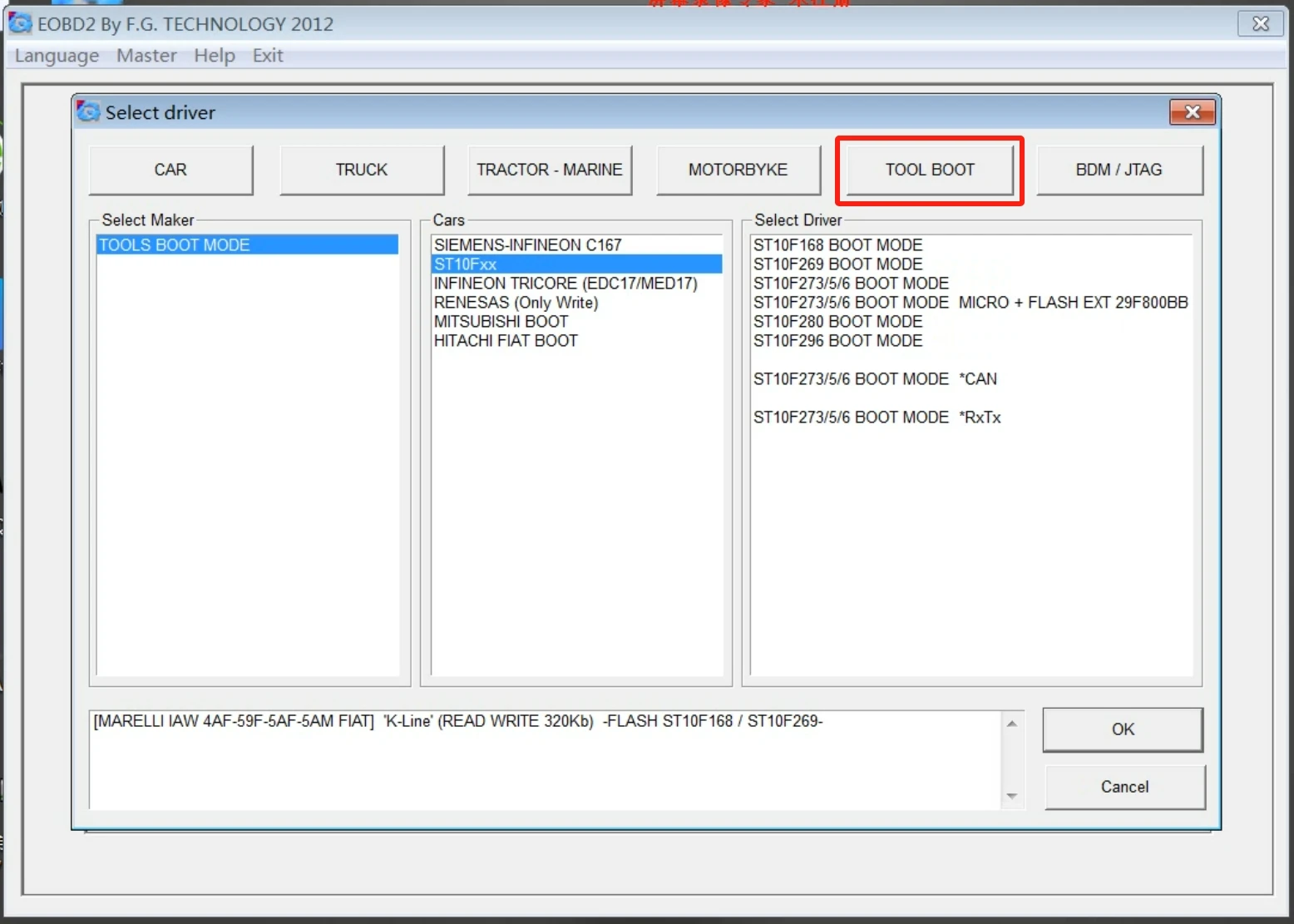

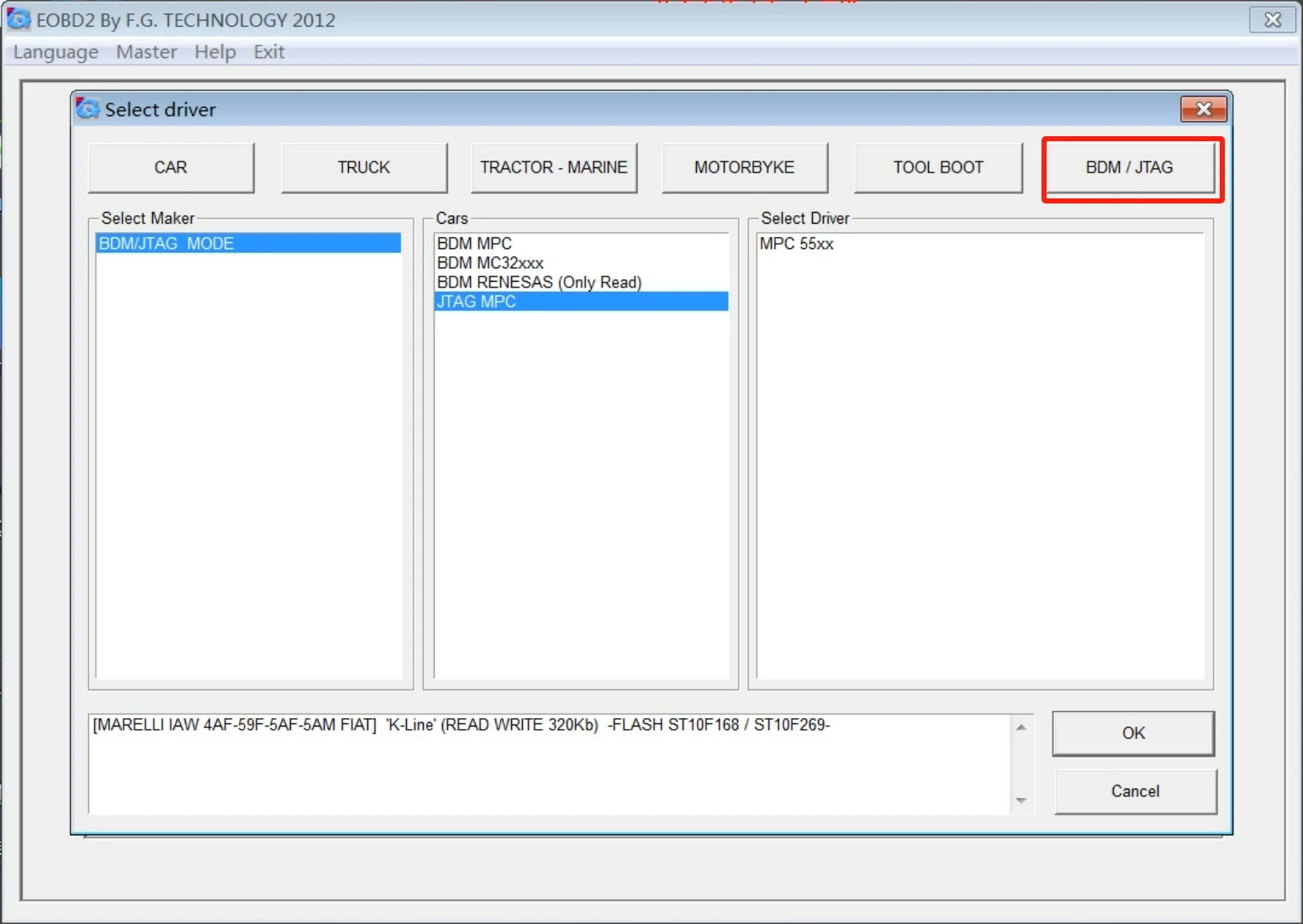

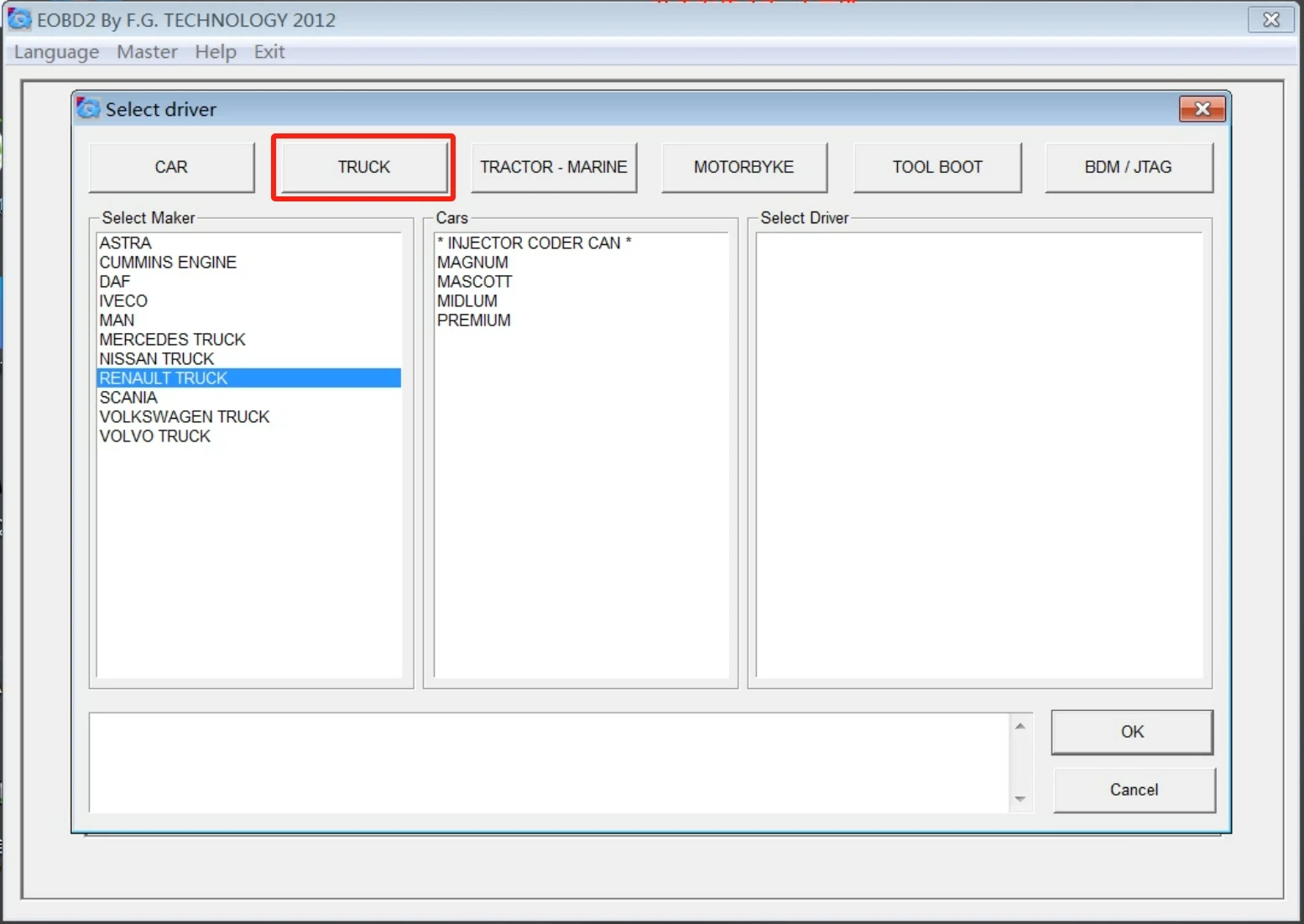

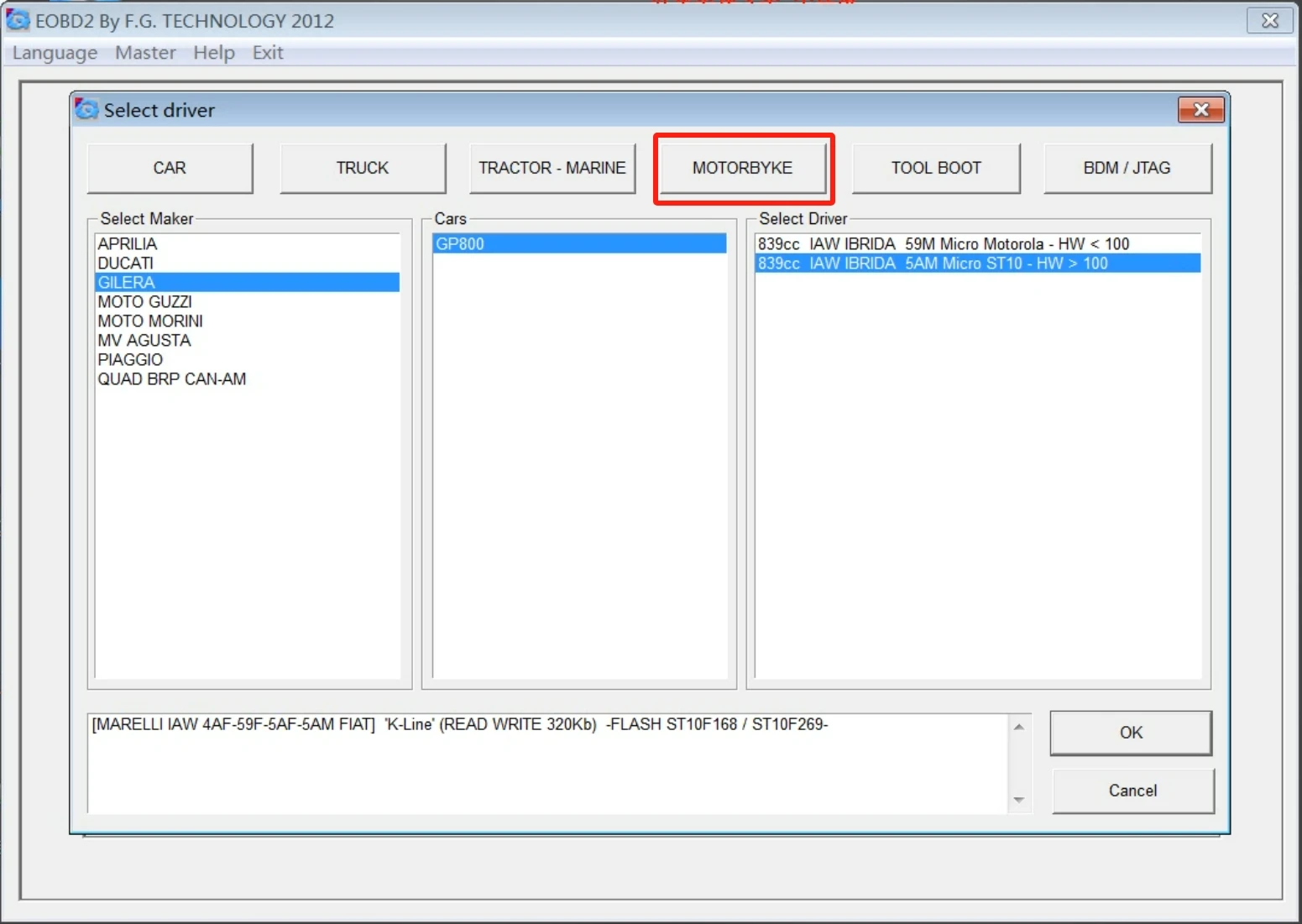

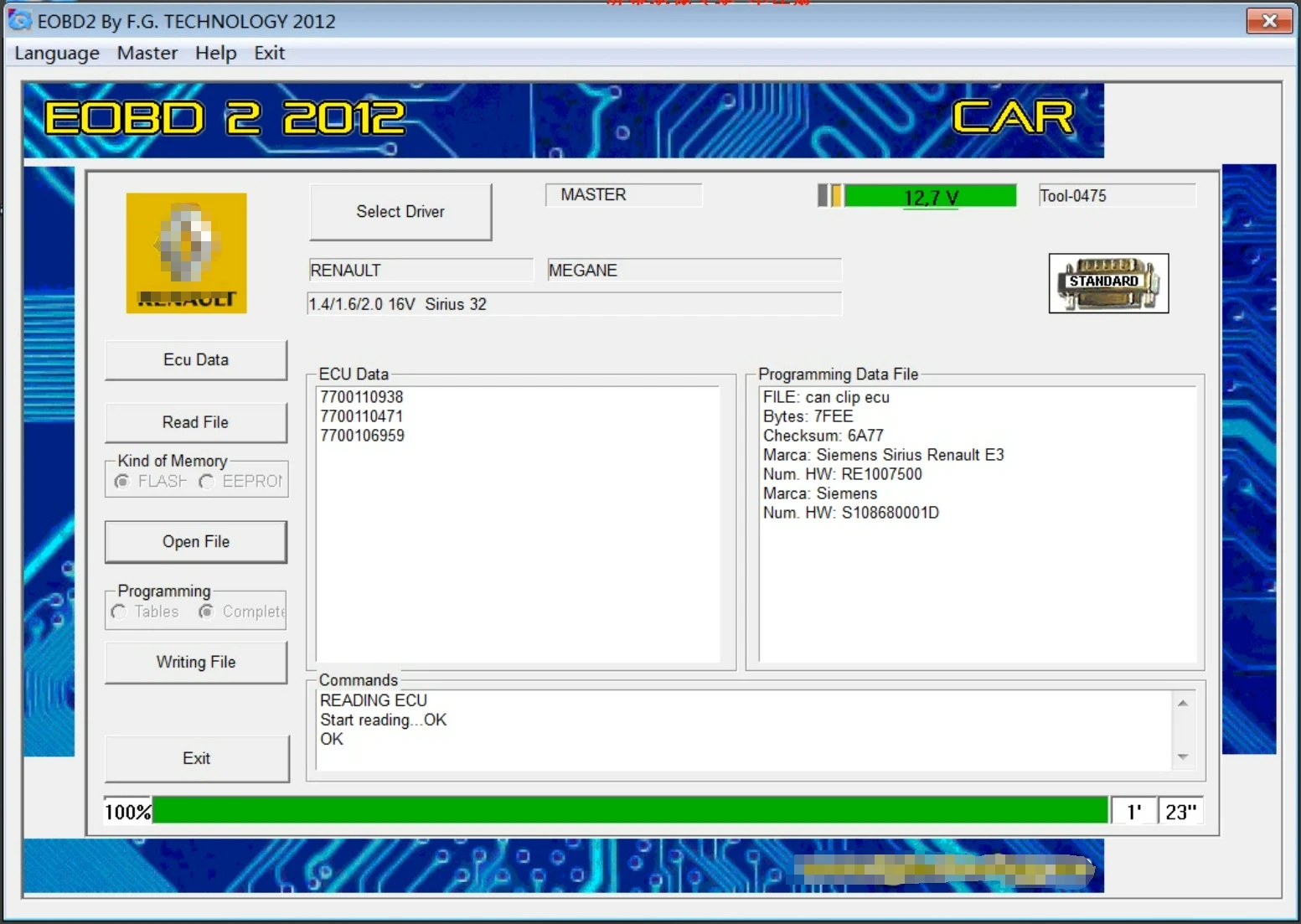

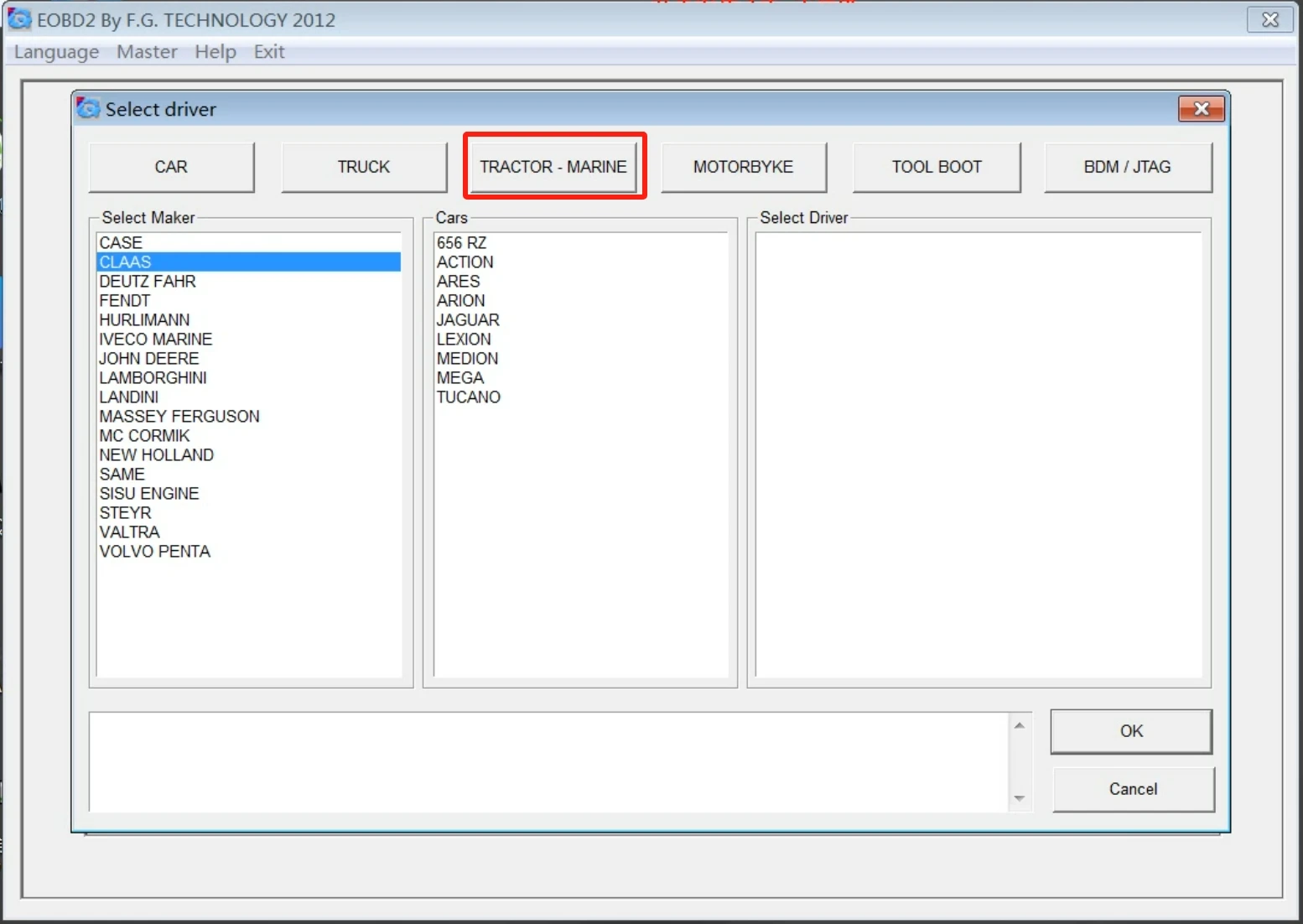

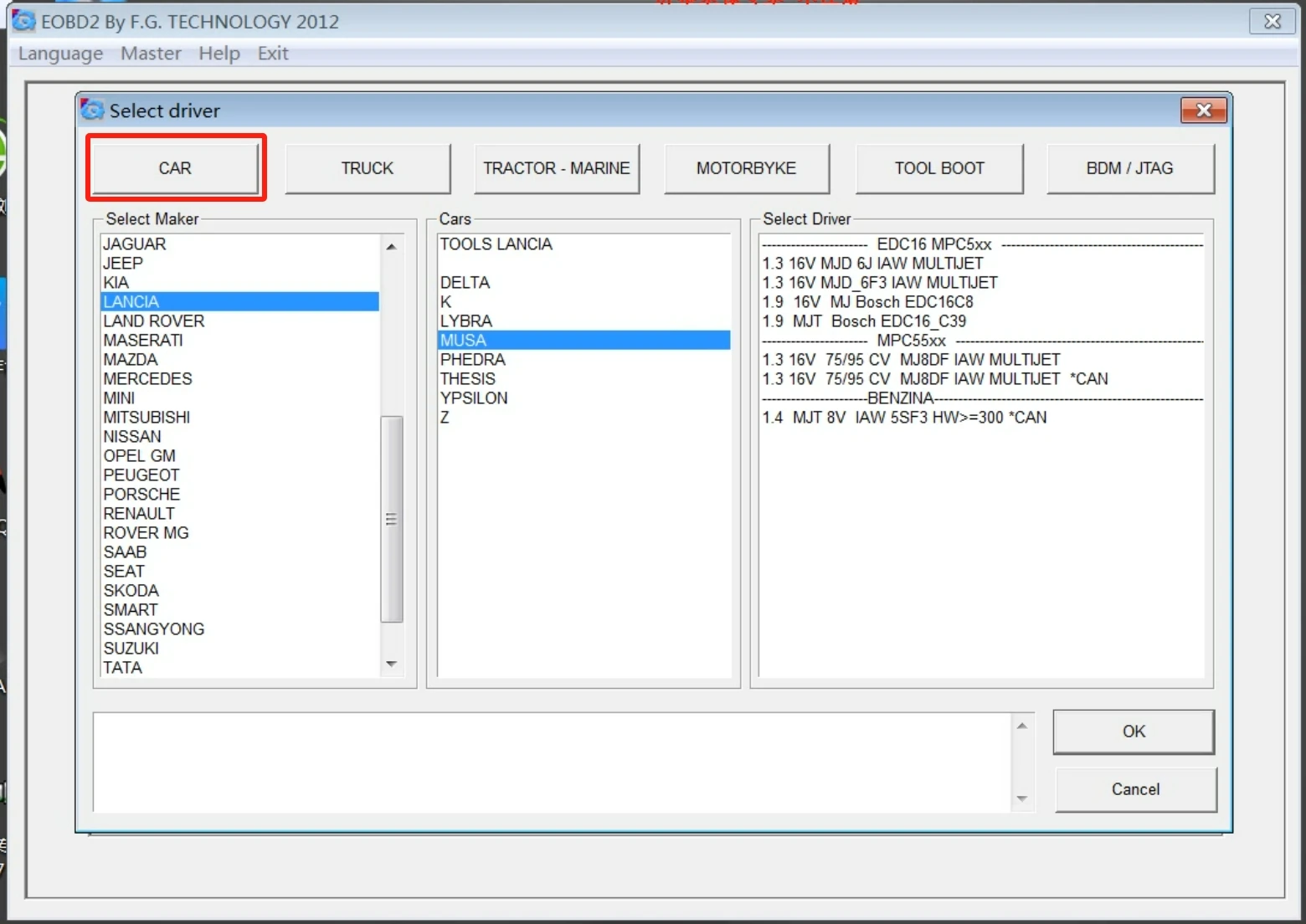

Computer screenshot of the software:
