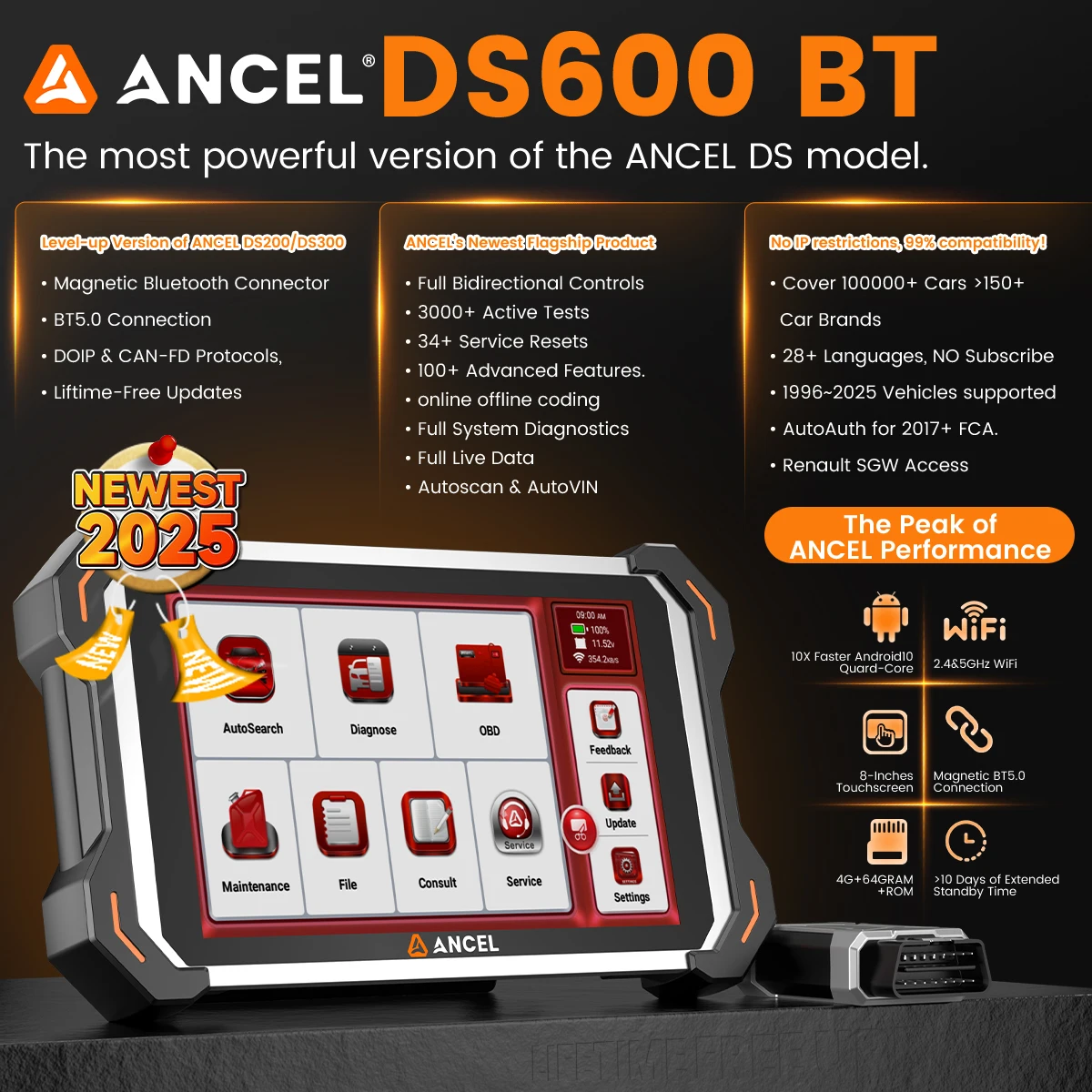

ANCEL DS600BT Support 34+ Special Functions

1.Oil Reset
The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the cluster or driving time to zero after the maintenance,so the maintenance light will go out and the system will start a new maintenance cycle.

2.D-P-F Regeneration
D-P-F Regeneration is used to clear PM(Particulate Matter)from the D-P-F filter through continuous combustion oxidation mode(such us high temperature heating conbustion,fuel additive or catalyst reduce PM ignition conbustion)to stabilize the filter perfornance.
D-P-F regeneration may be performed in the following cases:
a)The exhaust back pressure sensor is replaced.
b)The PM trap is removed or replaced
c)The fuel additive nozzle is removed or replaced
d)The cataytic oxidizer is removed or replaced.
e)The D-P-F regeneration MIL is on and maintenance is performed.
f)The D-P-F regeneration control module is replaced.

3.AFS(headlamp) Reset
The feature is used to initialize the adaptive headlamp system.According to the ambient light intensity,the adaptive headlamp system may decide whether to automatically turn on the headlamps,and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.

4.E-G-R Adaption
This function is used to learn the E-G-R(Exhaust Gas Recirculation)valve after it is cleaned or replaced.

5.Brake-pad Reset
If the brake pad wears the brake pad sense line,the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad.After replacing the brake pad,you must reset the brake pad.Otherwise,the car alarms.
Reset must be performed in the following cases:
a)The brake pad and brake pad wear sensor are replaced.
b)The brake pad indicator lamp is on.
c)The brake pad sensor circuit is short,which is recovered.
d)The servo motor is replaced.

6.IMMO Service
To prevent the car being used by unauthorized keys,the anti-theft key matching function must be performed so that the immoblizer control system on the car identifies and authorizes remote control keys to normally use the car.When the ingnition switch key,ignition switch,combined instrument panel,ECU,BCM,or remote control battery is replaced,anti-theft key matching must be performed.

7.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory,and recover the automatic ascending and descending function of power window.

8.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

9.Steering Angle Reset
To reset the steering angle,first find the relative zero point position for the car to drive in straight line.Taking this position as reference,the ECU can calculate the accurate angle for left and right steering.After replacing the steering angle position sensor ,replacing steering mechanical parts(such as steering gearbox,steering column,end tie rod,steering knuckle),performing four-wheel alignment,or recovering car body,you must reset the steering angle.

10.Injector Coding
Writing injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.After the ECU or injector is replaced,injector code of each cylinder must be confirmed or re-coded so that cylinder can better indentify injectors to accurately control fuel injection.

11.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

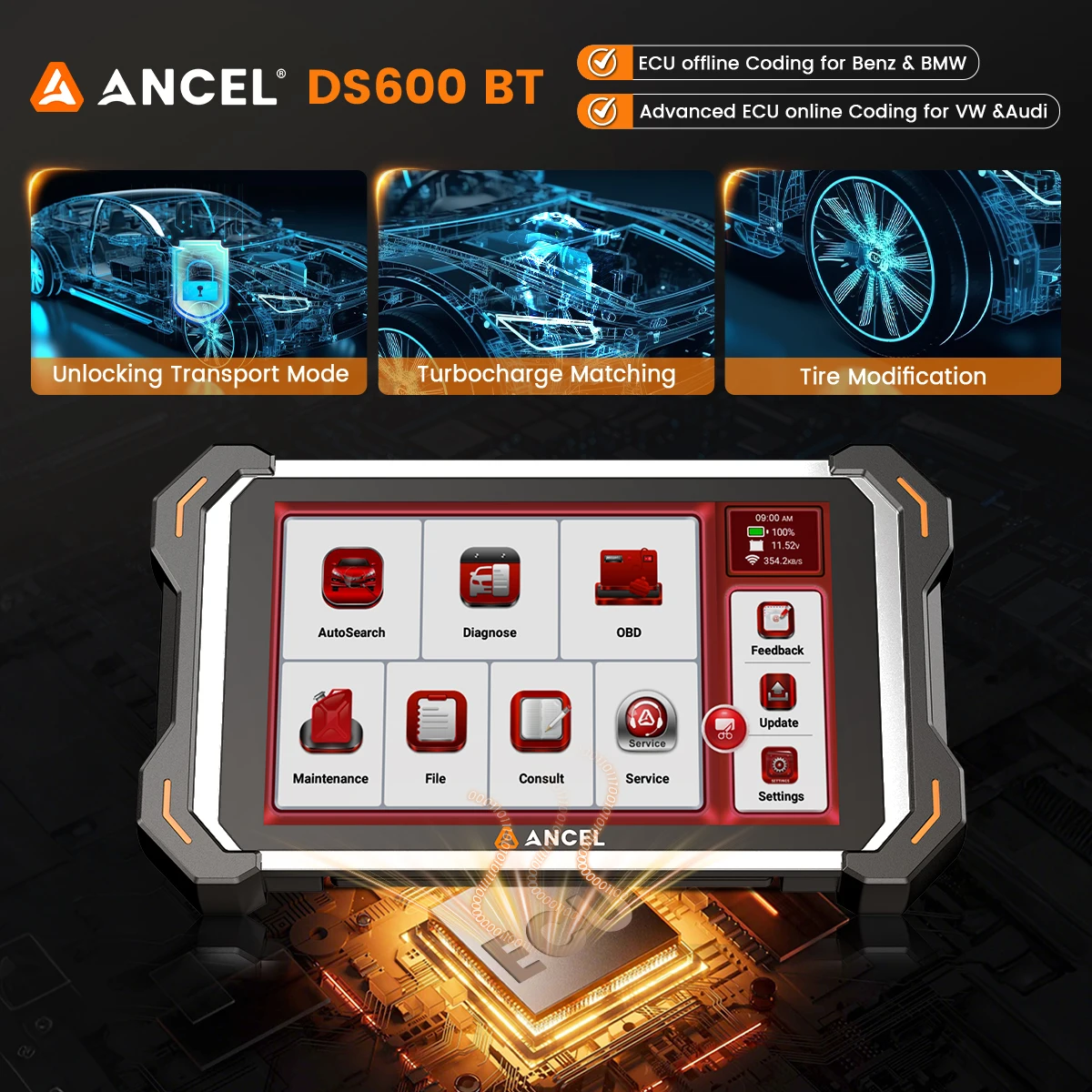

12.Transport Mode
In order to reduce power consumption,the following functions may be disabled,including limiting the vehicle speed,not waking up the door opening network,and disabling the remote control key,etc.At this time,the transport mode needs to be deactivated to restore the vehicle to normal.

13.Battery Matching
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery,in which the original low battery fault information will be cleared and battery matching will be done.
Battery matching must be performed in the following cases:
a)Main battery is replaced.Battery matching must be performed to clear original low battery information and prevent the related control module from detecting false information.If the related control module detects false information,it will invalidate some electric auxiliary functios,such as automatic start&stop function,sunroof without one-key trigger function,power window without automatic function.
b)Battery monitoring sensor.Battery matching is performed to re-match the control module and motoring sensor to detect battery power usage more accurately,which can avoid an error message displaying on the instrument panel.

14.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.When the vehicle collides and the airbag deploys,the corresponding fault code of the colision data appears,the airbag indicator lights up,and the fault code can’t be cleared.Since the data inside the airbag computor is disposable,it is required that all new accessories must be ewplaced,but after performing this function,the data of the airbag computer can be recovered and the fault code can be cleared,the airbag light will go out,and the airbag computer can continue to use.

15.Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.

16.Cluster Reset
a)cluster reset is to coopy,write,or rewrite the value of kilometers in the chip of cluster by using a car diagnostic computer and data cable,so that the cluster shows the actual cluster.
b)Usually when the cluster is not correct due to the damaged vehicle speed sensor or cluster failure,it is necessary to do cluster reset after maintenance.

17.ABS Bleeding
When the ABS contain air,the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.If the ABS computer,ABS pump,brake master cylinder,brake cylinder,brake line,or brake fluid is replaced,the ABS bleeding function must be performed.

18.Gear Learning
The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computerto more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped withDelphi engine, the MlL turns on after the engine is started.The diagnostic device detects the DTC P1336’gear not learned’. In this case, you must use the diagnostic device to perform gear learning for the car.After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, orcrankshaft flywheel is replaced, or the DTC ‘gear not learned” is present, gear learning must be performed.

19.Language Change
This function is used to change the system language of the vehicle central control panel.

20.Adblue Reset
After the diesel exhaust treatment fluid (car urea) is replaced or filled up,urea reset operation is required.

21.Elec. Throtle Adaption
Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learningvalue of the ECU returns to the initial state.By doing these, the movement of the throttle (or idle motor)can be more accurately controlled, thus adjust the intake volume.

22.Suspension Matching
This function can adjust the height of the body.When replacing the body height sensor in the air suspension system,or coontrol module or when the vehicle level is incorrect,you need to perform this function to adjust the body height sensor for level calibration.

23.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.

24.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (NOx)in engine exhaust.If the NOx fault is re-initialized and the NOx catalytic converter is replaced,it is necessary to reset the catalytic converter learned value stored in the engine ECU.

25.TPMS Reset
After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting functionmust be performed to reset tire pressure and turn off the tire pressure MIL.Tire pressure resetting mustbe performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tirepressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged,andtire is replaced for the car with tire pressure monitoring function.

26.A/T Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox isdisassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impactproblem. In this case, this function needs to be done so that the gearbox can automatically compensateaccording to the driving conditions so as to achieve more comfortable and better shift quality.

27.Sunroof Initialization
This function can set the sunroof lock off,closed when it rains,sliding/tilting sunroof memory function,temperature threshold outside the car etc.

28.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware)

29. Motor angular position sensor calibration
When the motor works in a high temperature environment or in a humid, dusty and other environment for a long time, the angular position sensor is prone to failure, and the signal of the angular position sensor is wrong after the failure, resulting in the motor not working normally, the system reliability is reduced, and the normal driving of the vehicle is affected. . At this time, it is necessary to calibrate the angular position sensor of the motor.

30. Engine power balance
High-quality engine balance that helps the engine spin more freely at high revs, improves redline, and increases power

31. High-voltage battery health inspection

32. Smart Cruise Control Calibration
Intelligent cruise control has the function of improving driving safety and comfort. When the intelligent cruise module is replaced, use this function to learn and match, and the system can function normally.

33. Automatic air conditioning initialization

34. G-P-F regeneration (particle trap regeneration)
The function of g-p-f is to reduce particulate matter, and it is arranged on the exhaust system of the car to collect the particulate matter in the organic exhaust gas of the car, reasonablyReduce the release of particulate matter, and according to the ECU operation, carry out air oxidation and ignition of the particles in the trap, and then do to regeneration

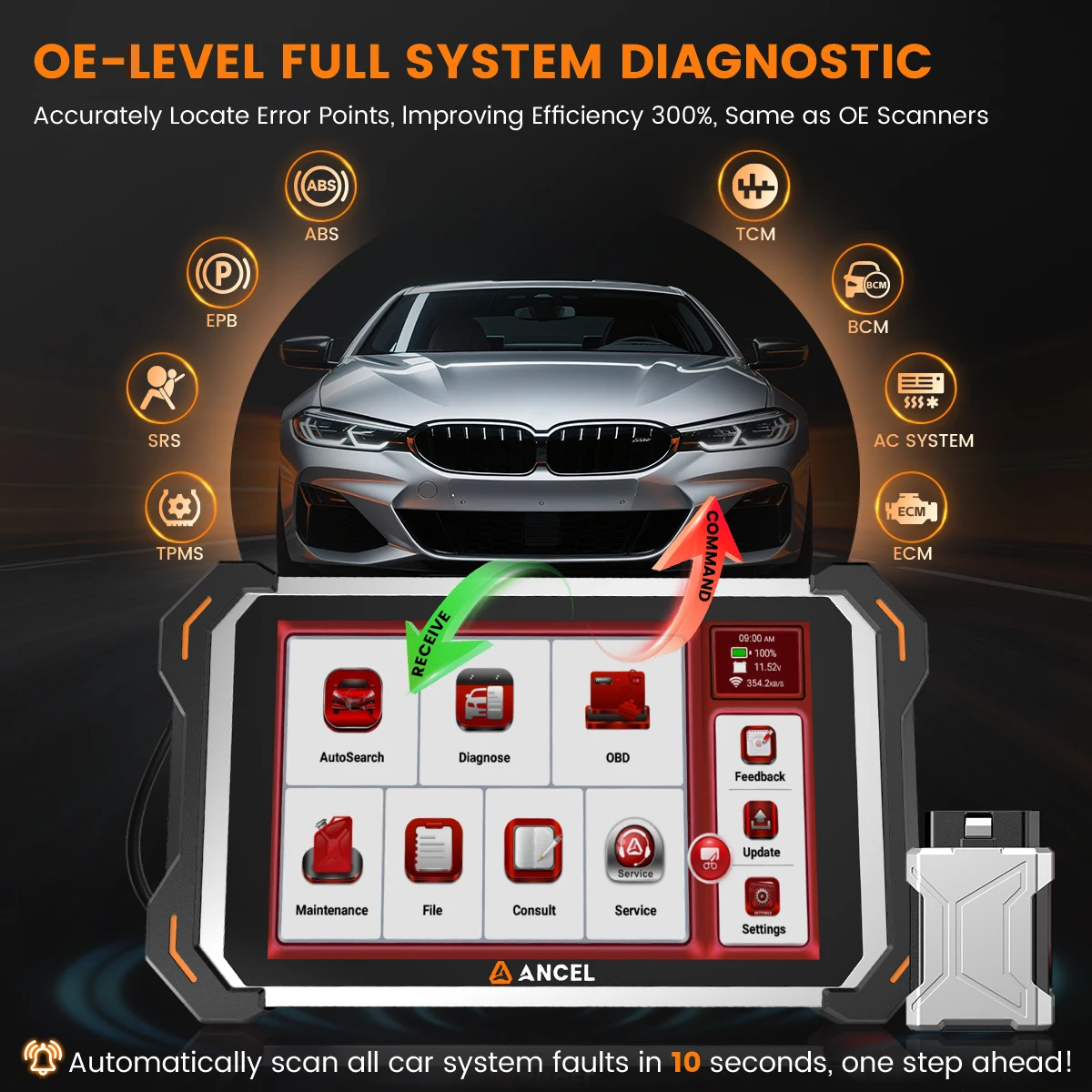

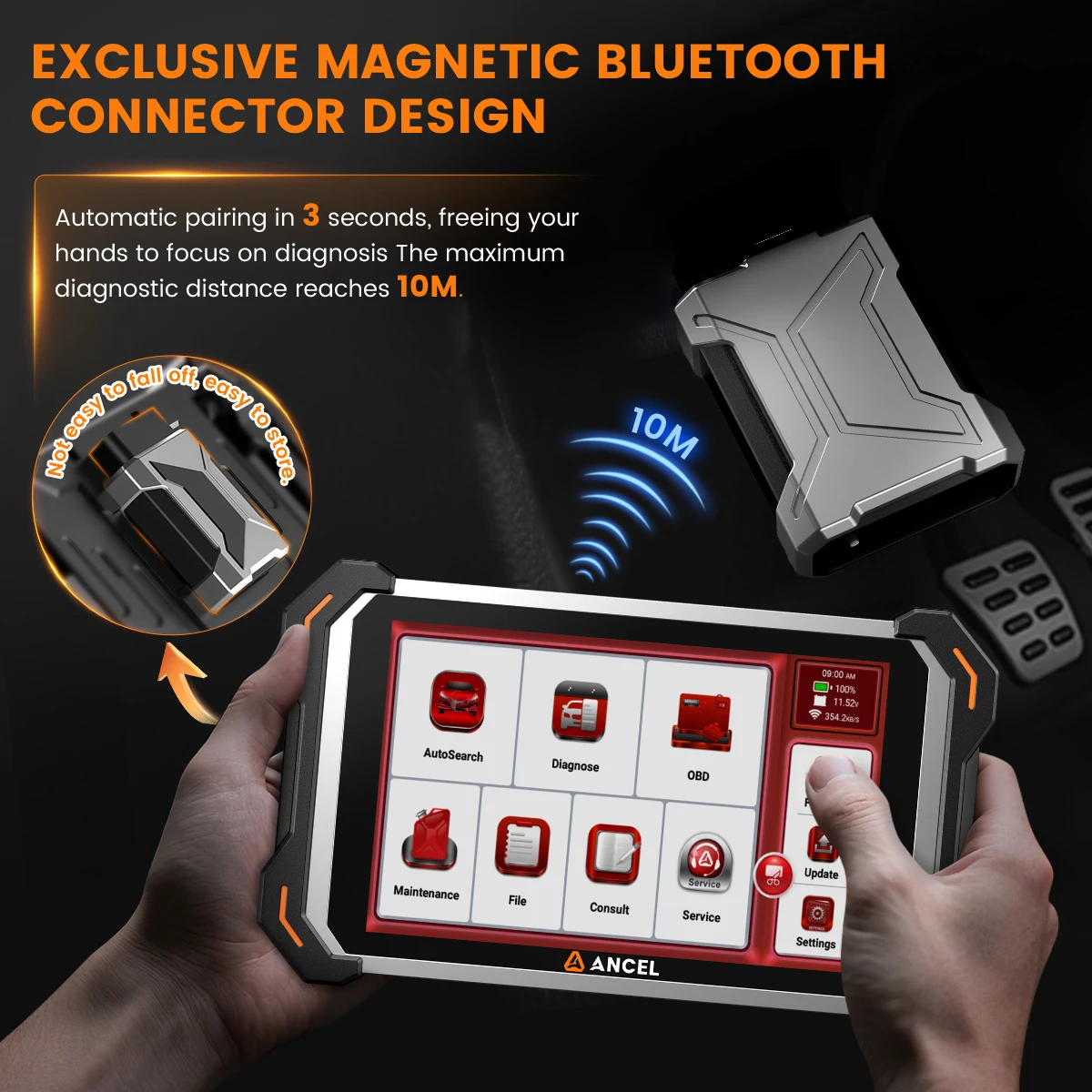

Wireless OE-Level All Systems Diagnostics

Equipped with Bluetooth VCI, you can do car diagnostics out of the car (up to 33F/10M) without being confined to a small space inside the car. Provides the convenience of Auto VIN, K8 pro allowing for easy access and diagnosis of all available modules on a wide range of vehicles, like PCM, ECM, BCM, TPMS, SAS, Fuel System, etc, to perform read/clear codes, view live data, freeze frame, perform active tests, and read ECU info… 12-In-1 Data Stream Graphics make data viewing more intuitive.Diagnostic reports can be shared via QR Code, Bluetooth or email.Built-in Browser and Fault Code Library allows you directly query the fault code when diagnosing.

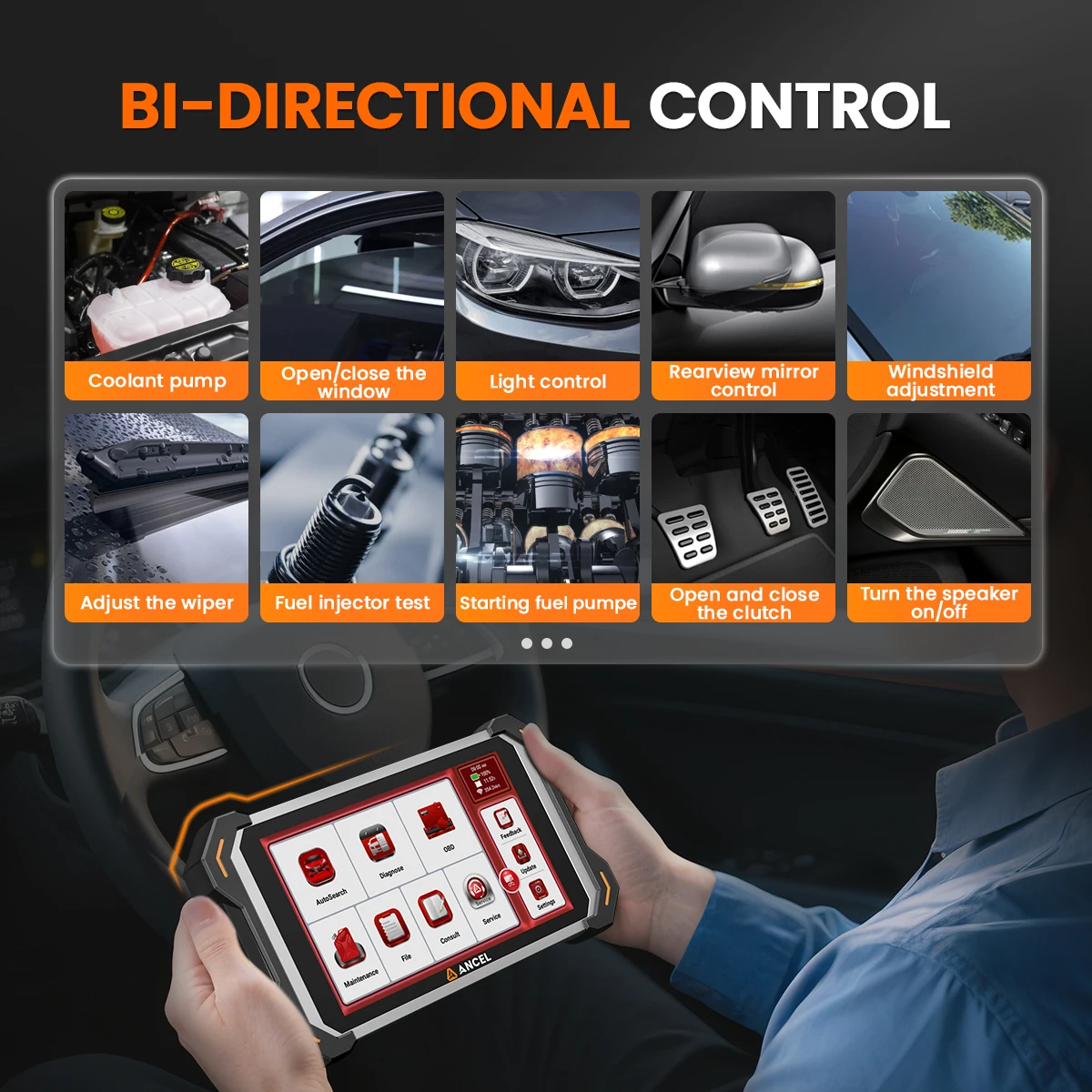

Active Test & Bi-Directional Control: Pinpoint Faults Easily

The DS600BT offers bi-directional control and active testing, allowing you to send commands to the vehicle’S ECU and monitor component responses—critical for identifying faulty parts.

Examples of active tests include:

Activating the coolant pump to check circulation.

Opening/closing windows to test power window systems.

Controlling headlights, taillights, and turn signals to verify lighting functionality.

Adjusting rearview mirrors to test motor operation.

Triggering the horn to check audio system integrity.

Testing fuel injectors and wiper systems for proper operation.

Note: Active tests depend on the vehicle’s electronic control units (ECUs). Only available tests for your specific vehicle will appear in the menu.

Active Test & Bi-Directional Control: Pinpoint Faults Easily

The DS600BT offers bi-directional control and active testing, allowing you to send commands to the vehicle’S ECU and monitor component responses—critical for identifying faulty parts.

Examples of active tests include:

Activating the coolant pump to check circulation.

Opening/closing windows to test power window systems.

Controlling headlights, taillights, and turn signals to verify lighting functionality.

Adjusting rearview mirrors to test motor operation.

Triggering the horn to check audio system integrity.

Testing fuel injectors and wiper systems for proper operation.

Note: Active tests depend on the vehicle’s electronic control units (ECUs). Only available tests for your specific vehicle will appear in the menu.

ANCEL DS600 Supported 100000+ vehicle models:

Europe vehicle ,after 2001 and newer :

Compatible with Vaz, Porsche, Maserati, BMW, Seat, VW, Audi, Citroen, Landrover, Smart, Renault, Skoda, Sprinter, Land Rover, Benz, Fiat, Opel, Volvo, Peugeot, Ferrari, Saab, Gaz, DR

USA vehicles , after 1996 and newer :

Compatible with Gm, USAFord, Chrysler, Dodge ; Willy; Australia: Compatible with Austford, Holden; Brazil: Compatible with BXFiat, BXGM

Aisa vehicles , after 2003 and newer :

Compatible with Changcheng, Daewoo, Huachen, Zhongxing, Indian Tata, JAC, Maruti, Perodua, Chery, Isuzu, Jinlong, Suzuki, Saipa, HM, Hmazda, Ikco, Malaysia Proton, Luxgen, Toyota, Changan, Futian, Honda, Wuling, V-class, Jpisuzu, Kia, Indian Maruti, Indian Mahindra, Malaysia Perodua, Hafei, Lifan, Mahindra, Nissan, Xiali, Zhongshun, Tata, Changhe, China GM, Saicmg, Mazda, Zhongtai, Daihatsu, BYD Flyer, Hyundai, Proton, Subaru, Ssangyong, Joylong, Mitsubishi,Gonow, Qoros, Maxus, Mvm

Multi-Language Support:

28 languages, including English, German, Spanish, French, Italian, Portuguese, Japanese, Russian, Polish, Turkish, Dutch, Hungarian, Traditional Chinese, Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish, Czech, Swedish, Danish, Persian, Serbian, Vietnamese, and Bulgarian.

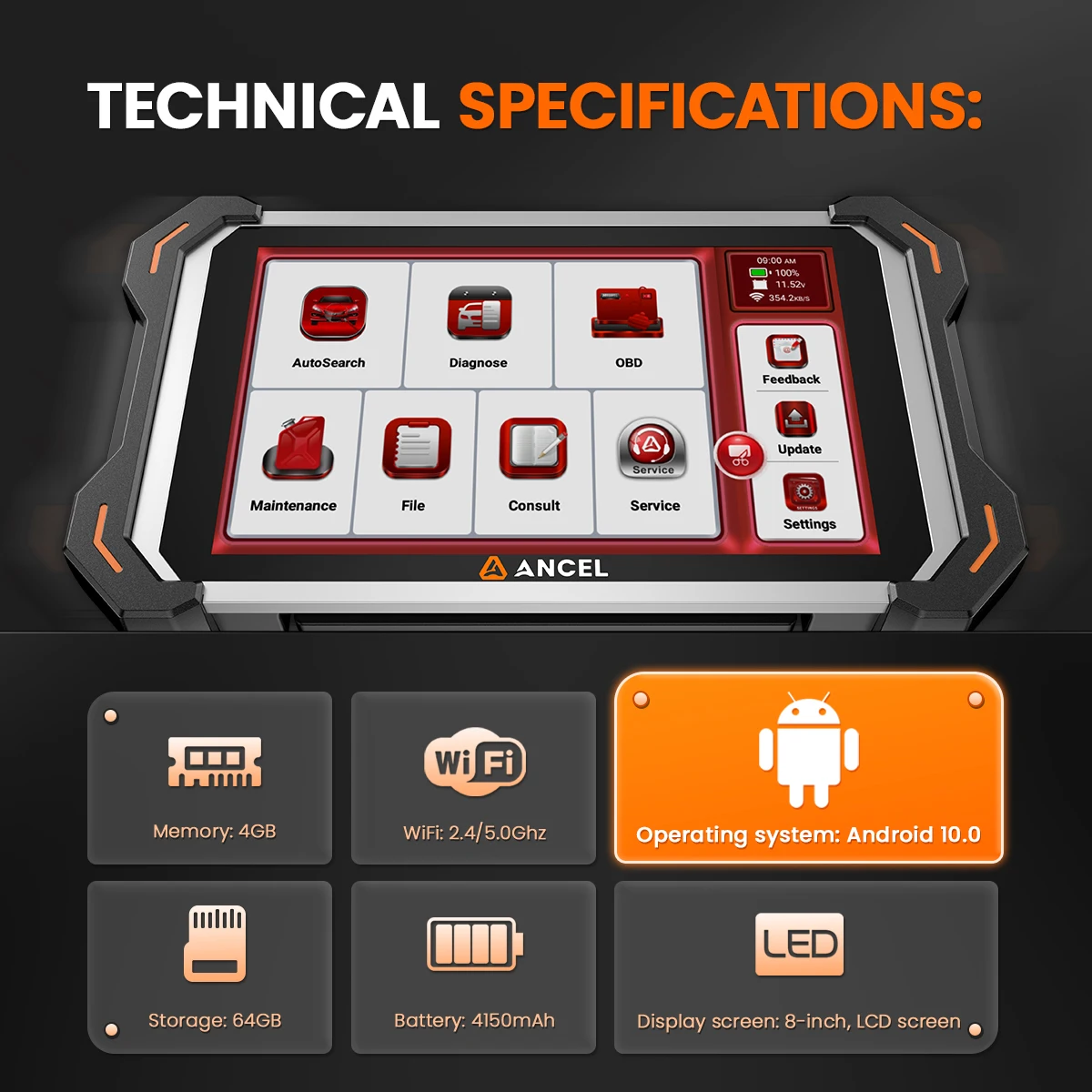

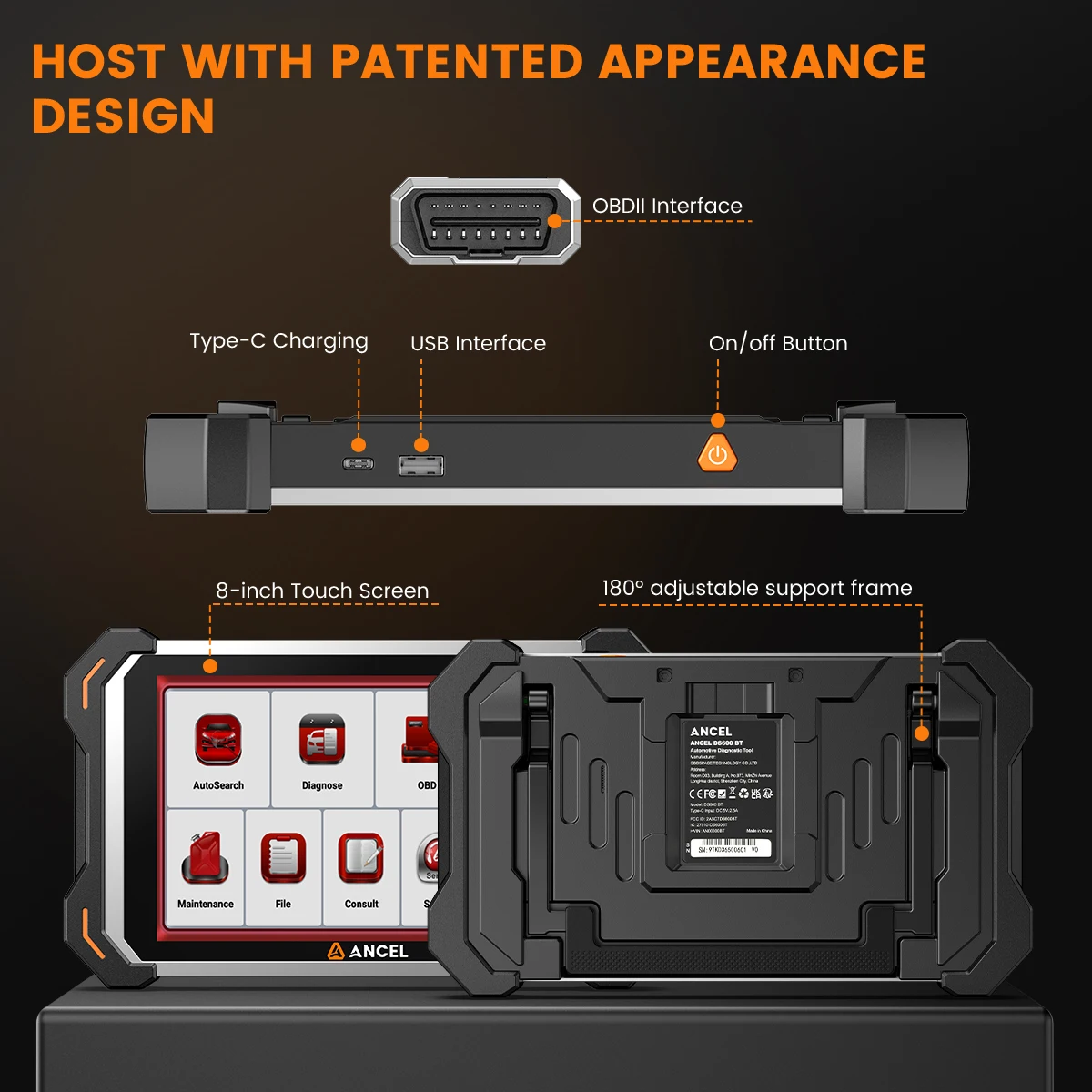

Key Features: Designed for Convenience

1.8.0-inch Touchscreen Color Display: Responsive and easy to navigate, even in bright environments.

2.Bluetooth VCI Connection: Wireless pairing eliminates cable clutter, offering flexibility during diagnostics.

Android 10 OS: Smooth performance with 4+64GB storage, providing ample space for data logs and software updates.

3.Long-Lasting Battery: 4150mAh/3.8V battery with over 10 days of standby time. Includes a 3-in-1 charging adapter (EU, US, UK plugs) for global use.

4.Multi-Language Support: 28 languages, including English, German, Spanish, French, Italian, Portuguese, Japanese, Russian, Polish, Turkish, Dutch, Hungarian, Traditional Chinese, Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish, Czech, Swedish, Danish, Persian, Serbian, Vietnamese, and Bulgarian.

5.Certifications: CE, FCC, IC compliant, ensuring quality and safety for the (European and American) markets.

ANCEL DS600BT Supported Additional Features:

Auto VIN read Function :

It can read VIN information automanually when you connect Car , fast get the information .

Quick Check.It adopts smart detection mode. After the vehicle is connected, the system will automatically recognize the vehicle information, automatically check the vehicle, and automatically generates a report.

Quick print diagnostic reports:
Thermal printer, work with the main unit, also can work with module dock. Quick print diagnostic reports anytime and anywhere.

Graphical display:
Combine: Displayed in graph merge status for data comparison.

Diagnostic Feedback:
If you encounter an unresolved problem or diagnostic software bug during diagnosis, you can revert the most recent 20 test records to ANCEL Team. When we receive your feedback, we will analyze and troubleshoot it in a timely manner, to improve the quality of our products and user experience.

Customize
Customize the data stream option to be viewed. Tap the button, a pull-down list of the data stream items appears on the screen. Select the desired items (max12 items), and then screen will display the waveforms corresponding to these items immediately. If need to remove any items, just deselect them.

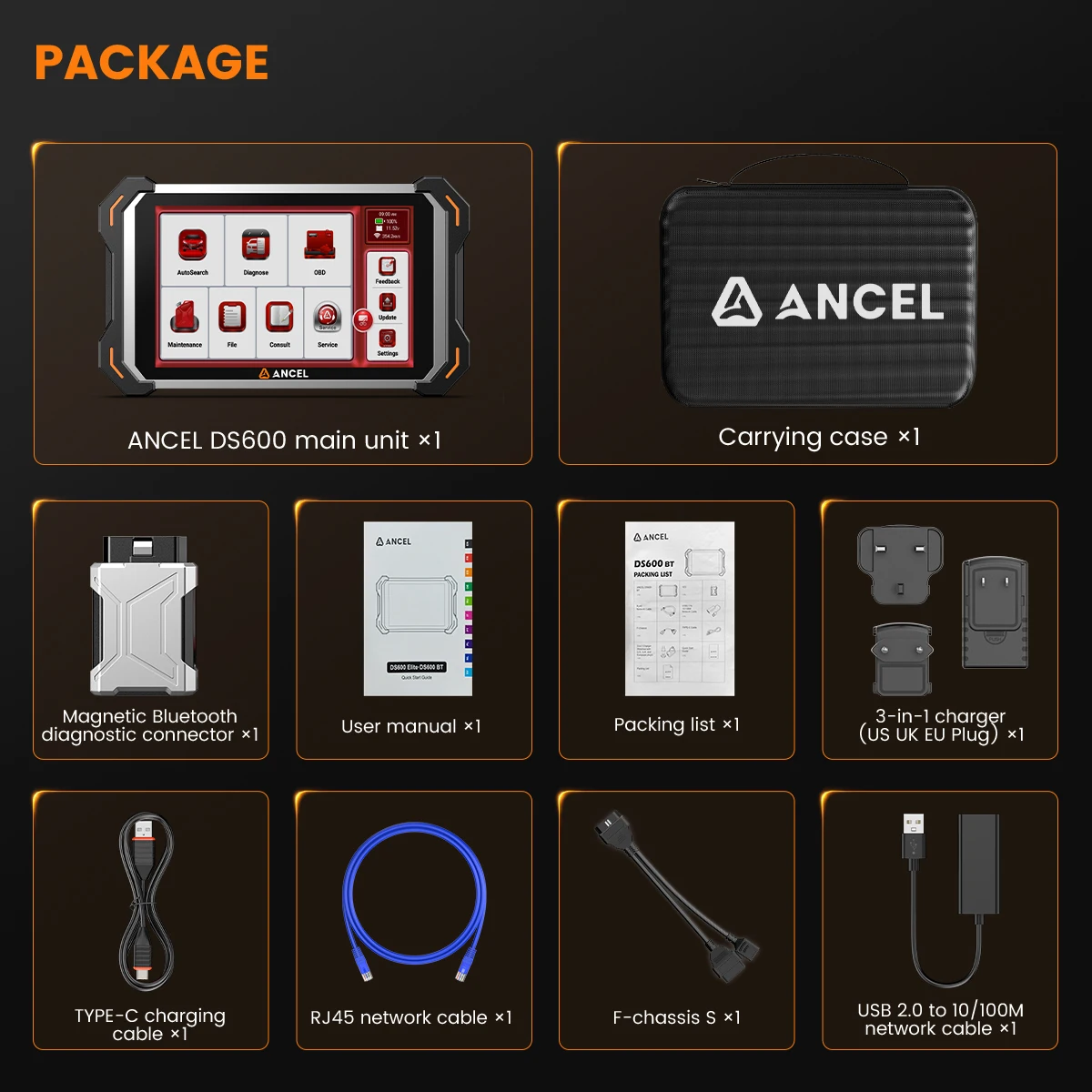

Package List:

1 x ANCEL DS600BT Diagnostic Scanner

1 x Bluetooth VCI Adapter

1 x Type-C Data Cable

1 x 3-in-1 Charging Adapter (EU/US/UK Plugs)

1 x 10-Language Paper Quick Start Guide
