12‑Process of learning ECU Repairs

12‑Process of learning ECU Repair (step‑by‑step)

ECU Repair Lab is a hands-on learning hub for automotive enthusiasts, technicians, and electronics hobbyists who want to master the art of diagnosing and repairing car engine control units (ECUs).

We break down complex electronics into practical steps from understanding how ECUs work, to performing component-level repairs, to safely reflashing and bench-testing modules. Whether you’re starting with a soldering iron or looking to grow your diagnostics skills, our tutorials, tools, and real-world case studies will help you build confidence and capability.

This is a practical, paced program for someone starting from basic electronics + automotive familiarity.

Weeks 1–2 — Foundations of ECU Repair

  • Learn basic electronics: voltage, current, resistance, diodes, capacitors, transistors.

  • Tools: practice with a multimeter, soldering iron, wire stripper.

  • Read: OBD‑II basics and automotive CAN bus overview.
    Outcome: Safe use of a multimeter, soldering basic through-hole joints, understanding of ECU Repair role.

Weeks 3–4 — Automotive systems & diagnostics

  • Study engine sensors/actuators (MAP, MAF, TPS, injectors, ignition coils).

  • Practice reading live data with an OBD‑II scanner.

  • Learn fault code logic (P‑codes vs manufacturer codes).
    Outcome: Interpret common error codes, trace sensor circuits.

Weeks 5–6 — Electronics in ECU Repairs

learning ECU Repairs

  • Study typical ECU internals: power supply, microcontroller, op amps, MOSFETs, EEPROM/Flash.

  • Learn to read PCB traces, identify SMD components, and read BGA/large IC packages conceptually.

  • Begin using an oscilloscope to observe sensor/actuator signals and power rails.
    Outcome: Recognize power rail faults, signal waveform anomalies.

Weeks 7–8 — Component-level ECU repair

  • Practice SMD soldering, hot-air rework, flux use, and through‑hole component replacement.

  • Learn desoldering ICs, cleaning corrosion, replacing voltage regulators and MOSFETs.

  • Work on donor ECUs or practice boards.
    Outcome: Confident SMD/through‑hole repairs on non-critical boards.

Weeks 9–10 — Firmware, bootloaders & reflashing basics

  • Understand ECU flash memory and EEPROM differences.

  • Learn safe read/write tools and procedures (backups, compatible hardware).

  • Practice reading an ECU’s firmware and restoring backups on a test bench.
    Outcome: Safe creation of backups and basic reflash workflow.

Weeks 11–12 — Advanced troubleshooting & case studies

  • Work on full diagnosis: intermittent faults, thermal stresses, connector issues.

  • Do a full repair lab case from diagnosis → bench repair → reinstall → road test.

  • Prepare documentation/photos for portfolio.
    Outcome: Complete repair, with documented process and warranty-ready checks.

Essential equipment & recommended specs on ECU Repair

Start small and grow. Mark purchases as “bench level” vs “professional”.

Basic starter kit

  • Digital multimeter (auto-ranging, ~True RMS)

  • Quality soldering iron (60W, temperature control)

  • Desoldering pump and solder wick

  • Precision screwdriver set and spudger

  • Magnifying lamp or stereo microscope (5–20×)

  • Wire strippers, cutters, tweezers

Bench/professional tools

learning ECU Repairs

  • Bench oscilloscope (2 ch, 50–100 MHz minimum) — for waveform diagnosis

  • Bench power supply (0–30 V, 0–5 A, adjustable current limit) — for bench testing ECUs

  • Hot‑air rework station (temperature control, hot tip options)

  • Solder paste, flux, hot plate or reflow station (for BGA-level work)

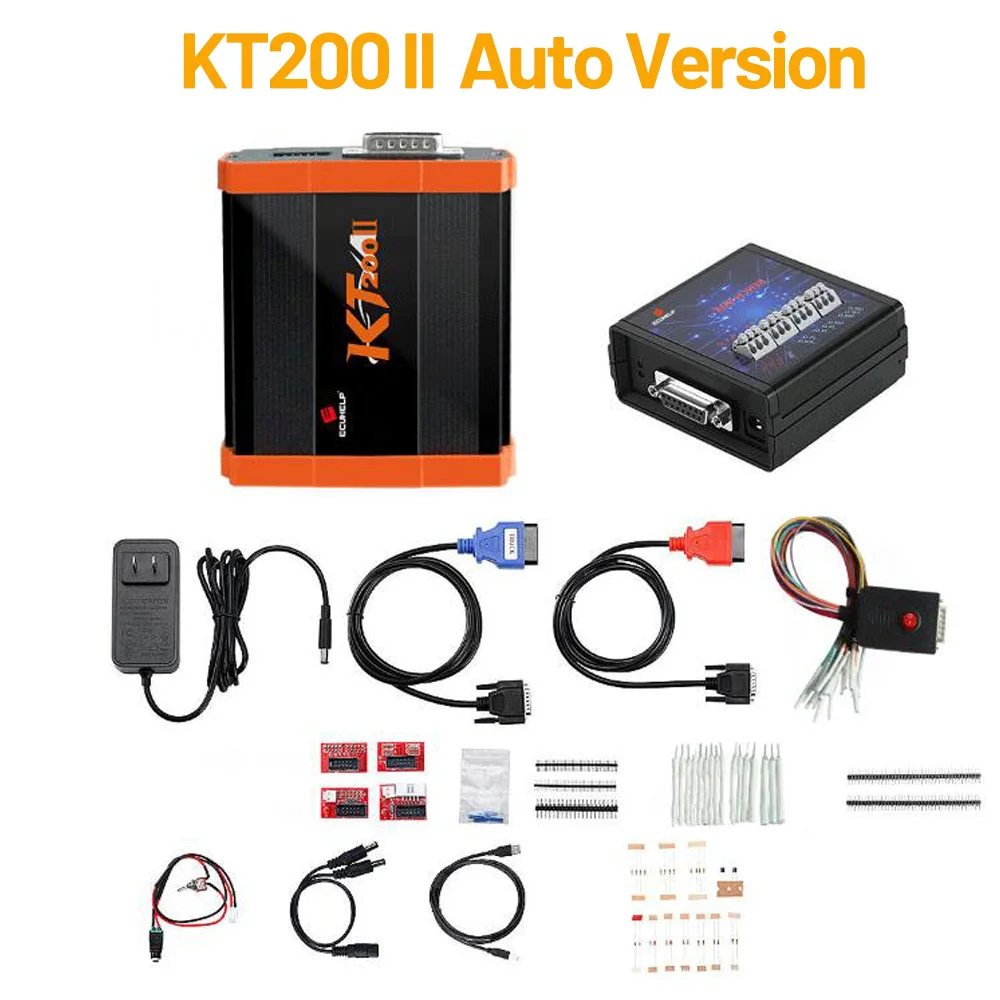

  • EEPROM/Flash reading tools (e.g., CH341A, or commercial ECU programmers) use model-compatible tools

  • ECU breakout harnesses / adapter boards — for safe bench hooking

  • ESD mat, wrist strap must have

Software

  • OBD‑II scanner app or tool (Live data, freeze frame, DTC clear)

  • ECU-specific flashing tools (vendor or aftermarket ensure legal use)

  • Schematic capture or note tools (to document repairs)

Safety & legal considerations (must-read)

  • Do not provide advice to defeat emissions control systems, immobilizers, or safety features. It’s illegal in many jurisdictions and often dangerous.

  • Back up any ECU firmware and EEPROM before writing or modifying. Corrupt firmware can immobilize a vehicle.

  • Use proper ESD precautions semiconductor damage is subtle and frequent if ignored.

  • When bench-testing ECUs, use a current-limited power supply and proper harnesses to avoid damage.

  • Always follow local regulations for modifications and emissions. If working for others, get written permission for any reprogramming.

Practical learning projects (portfolio-building)

  1. Power-rail repair: Find an ECU with a blown voltage regulator or shorted fuse trace, replace the regulator, and restore 5V/3.3V rails. Document with photos and oscilloscope traces.

  2. Corrosion restoration: Clean and repair an ECU affected by moisture; replace corroded connectors and corrosion-damaged traces with jumper wires.

  3. Failed MOSFET/driver replacement: Replace engine-driver MOSFETs and test injectors/coils with scope.

  4. EEPROM recovery: Read, save, and restore EEPROM contents using a programmer; demonstrate recovery from a corrupted EEPROM (use a non-operational ECU for testing).

  5. Reflow of BGA components: Practice on donor boards; show before/after function and thermal profiling.

Troubleshooting checklist (quick)

  1. Visual inspection (burns, corrosion, cracked solder joints).

  2. Check power rails with multimeter (no-load then under bench load).

  3. Look for short circuits between rails (use current-limited power supply).

  4. Probe key signal lines with oscilloscope (clock lines, CAN_H/CAN_L, injector driver waveform).

  5. Swap suspect passives (caps, diodes) and retest.

  6. Reflash only after hardware is confirmed good; always use verified backups.

Sample content calendar (first 8 posts)

  1. What is an ECU? Inside the black box anatomy, functions, and why they fail.

  2. Tools you actually need to start repairing ECUs kit, budget, and upgrades.

  3. How to safely bench-test an ECU (step‑by‑step) power harness, current limiting, and checks.

  4. Soldering & rework for automotive PCBs SMD vs through‑hole, techniques, common mistakes.

  5. Reading flash and EEPROM: backups and safety why backups matter and how to make them.

  6. Case study: Replacing a blown regulator on a 2005 ECU full photo log.

  7. Using an oscilloscope to find intermittent faults practical waveforms and what they mean.

  8. Business basics: quoting ECU repairs, warranties & returns how to price and protect yourself.

How to safely bench‑test an ECU a step‑by‑step guide

Intro: Bench-testing lets you power and communicate with an ECU outside the car so you can diagnose problems without risking the vehicle. Done wrong, bench testing can permanently damage an ECU — this guide shows safe procedures.

What you need: bench power supply (adjustable, current-limited), ECU harness or breakout adapter, bench multimeter, oscilloscope (optional), ESD mat/strap, basic hand tools.

Step 1 — Visual inspection: Check for cracked solder joints, burnt components, corrosion, and broken connectors. Document with photos.

Step 2 — Identify power pins & grounds: Use a wiring manual or look for markings. If unsure, trace PCB connections from large electrolytic caps and input diodes — these usually feed the regulator.

Step 3 — Connect ground first: Place ECU on ESD mat and connect supply ground to ECU chassis ground. Double-check connections.

Step 4 — Set current limit low: Set bench supply to the ECU’s operating voltage (commonly 12 V for automotive ECUs) but set current limit low (e.g., 0.5–1 A) to start. This prevents damage if there’s a short.

Step 5 — Apply power and monitor: Apply power and watch current draw. Idle current should be small; sudden high current indicates a short. If current spikes, cut power and investigate.

Step 6 — Check rails and reference voltages: Use a multimeter to measure regulator output (5 V, 3.3 V) and key reference voltages. Use the oscilloscope to view clock lines and CAN bus (if active).

Step 7 — Add peripherals if needed: Many ECUs require sensor simulation or a CAN gateway to boot. Use simulation harnesses or offline harnesses where possible. If you need to communicate, use a proper interface tool and confirm you are using manufacturer-appropriate protocols.

Step 8 — Document results & backup firmware: If ECU boots, read/backup ECU flash and EEPROM before doing any writes.

Safety & final notes: If you’re unsure about pinouts, stop. Incorrect powering is a leading cause of destroyed ECUs.

Monetization & growth tips

  • Publish detailed case studies with before/after photos — high trust and shareability.

  • Offer downloadable checklists or wiring diagrams as gated content (email capture).

  • Build an online course (video + workbook) demonstrating hands‑on repairs.

  • Partner with local garages for referrals or offer remote diagnostic consults.

  • Use YouTube for teardown and repair videos — crosslink to blog posts.

Recommended learning resources (general; check latest editions)

  • Intro electronics textbooks (e.g., “Practical Electronics for Inventors”)

  • Automotive electronics courses from trade schools or community colleges

  • Standards/reading: OBD-II specifications and CAN bus basics (search for latest resources)

  • Manufacturer service manuals (model-specific pinouts and boot procedures)

Note: I can’t fetch live links because web access is currently disabled in this session. If you want, tell me which ECU models or car brands you’ll work on and I’ll create a tailored toolkit, sample wiring diagrams, and a prioritized learning path for those models using my knowledge to date.

Quick checklist to get started today

  1. Buy a good multimeter, soldering iron, ESD mat, and a bench power supply.

  2. Start learning electronics basics (resistors, caps, diodes, MOSFETs).

  3. Practice soldering on old PCBs.

  4. Get an OBD‑II scanner and learn live data and basic DTCs.

  5. Do your first bench test on a non‑working donor ECU following the step‑by‑step above.
